Industrial balances / Bench scale

Bench scale KERN ECE-N

  • High mobility: Battery operation, compact, flat construction and low weight make this scale ideal for the use in several locations
  • Particularly flat design
  • Very fast display: steady weight values within 2 sec
  • Simple and convenient 2-key operation
  • Adjusting program CAL, external test weights at an additional price
  • Platte: 320 x 260 mm
Model readout range reproductibility linearity
g kg g g
ECE 10K-3N 5 10 5 ±20
ECE 20K-2N 10 20 10 ±40
ECE 50K-2N 20 50 20 ±50


Bench scale KERN ECB-N

  • High mobility: Battery operation, compact, flat construction and low weight make this scale ideal for the use in several locations
  • Particularly flat design
  • Very fast display: steady weight values within 2 sec
  • Simple and convenient 2-key operation
  • Adjusting program CAL, external test weights at an additional price
  • Platte: 320 x 260 mm
Model readout range reproductibility linearity
g kg g g
ECB 10K-3N 5 10 5 ±20
ECB 20K-2N 10 20 10 ±40
ECB 50K-2N 20 50 20 ±50


Bench scale KERN FCB

  • Second display on the rear of the balance
  • PRE-TARE function for manual subtraction of a known container weight, useful for checking fill-levels
  • High mobility: Battery operation, compact construction and low weight make this balance ideal for use in several locations (production, warehouse, dispatch department, ...)
Model readout range reproductibility linearity
g kg g g
FCB 3K0.1 0.1 3 0.1 ±0.3
FCB 8K0.1 0.1 8 0.1 ±0.3
FCB 6K0.5 0.5 6 0.5 ±1.5
FCB 12K1 1 12 1 ±3
FCB 30K1 1 30 1 ±3
FCB 24K2 2 24 2 ±6


Bench scale KERN FCE-N

  • Entry-level bench scale – mobile, practical, lightweight
  • Simple and convenient 2-key operation
  • Very fast display: steady weight values within 2 sec
  • Ideal as a compact letter and parcel scale, especially where space is limited
  • Ideal as a grading, comissioning or simple checkweighing scale in production or dispatch
Model readout range reproductibility linearity
g kg g g
FCE 3K1N 1 3 2 ±3
FCE 6K2N 2 6 2 ±4
FCE 15K5N 5 15 5 ±15
FCE 30K10N 10 30 10 ±30


Bench scale KERN FCF

  • Easy to use
  • Very fast display: steady weight values within 2 sec
  • Ideal as a
  • - compact letter and parcel scale, especially where space is at a premium
  • - grading or commissioning balance or simple checkweigher in production or dispatch
  • - Checkweigher in the catering trade, cafeterias, school kitchens
  • High mobility: Battery operation/rechargeable battery pack (optional), compact construction and low weight make this balance ideal for use in several locations (production, warehouse, dispatch department etc.)
Model readout range reproductibility linearity
g kg g g
FCF 3K-4 0.1 3 0.1 ±0.3
FCF 30K-3 1 30 1 ±3


Bench scale KERN FFN

  • All-round bench scale, protected by stainless steel and IP65 rating, now also with EC type approval [M]
  • Ideal for the food industry
  • Ideal for the robust industrial applications
  • Your support in a HACCP-compliant quality system
  • High mobility: thanks to battery operation, compact construction and low weight, it is suitable for use in several locations such as production, kitchen, sales office etc.
  • Stainless steel housing, rust-proof and easy to clean
  • Recessed grips on the underside of the scale for easy transportation
  • IP65: Dust and spray protected (only when using rechargeable battery pack)
Model readout range plate
g kg mm
FFN 1K-4N 0.2 1.5 230x190
FFN 3K0.5IPN 0.5 3 230x190
FFN 6K1IPN 1 6 230x190
FFN 15K2IPN 2 15 230x190
FFN 25K5IPN 5 25 237x197
FFN 1K-4NM 0.5 1.5 230x190
FFN 3K1IPM 1 3 230x190
FFN 6K2IPM 2 6 230x190
FFN 15K5IPM 5 15 230x190
FFN 25K10IPM 15 25 230x190


Bench scale KERN FKB

  • Large, high resolution bench scale, also with EC type approval [M]
  • PRE-TARE function for manual subtraction of a known container weight, useful for checking fill-levels
  • Precise counting: The automatic reference weight optimisation of reference weight gradually improves the averag piece weight value
  • not for FKB-M: Freely programmable weighing unit, e.g. display direct in special units such as length of thread g/m, paper weight g/m2, or similar
  • Optional battery operation, batteries 6×1.5 V Size C not standard, operating time up to 40 h
Model readout range reproductibility linearity plate
g kg g g mm
FKB 6K0.02 0.02 6 0.04 ±0.1 340x240
FKB 8K0.05 0.05 8 0.05 ±0.15 340x240
FKB 16K0.05 0.05 16 0.1 ±0.25 340x240
FKB 16K0.1 0.1 16 0.1 ±0.3 340x240
FKB 36K0.1 0.1 36 0.2 ±0.5 340x240
FKB 36K0.2 0.2 36 0.2 ±0.6 340x240
FKB 65K0.2 0.2 65 0.4 ±1 340x240
FKB 65K0.5 0.5 65 0.5 ±1.5 340x240
FKB 8K0.1M 0.1 8 0.1 0.3 340x240
FKB 65K1M 1 65 1 3 340x240


Bench scale KERN FKB-A

  • Bench scale up to 65 kg with large weighing plate
  • PRE-TARE function for manual subtraction of a known container weight, useful for checking fill-levels
  • Particularly practical: thanks to the large weighing ranges and compact dimensions, you can accurately weigh heavy loads in the most restricted of spaces. Useful for determining very small weight differences, such as, for example, gas wastage, abrasion of mechanical parts etc.
  • Freely programmable weighing unit, e.g. display direct in special units such as length of wire g/m, surface weight g/m2, or else
Model readout range reproductibility linearity plate
g kg g g mm
FKB 8K0.1A 0.1 8 0.1 ±0.3 340x240
FKB 15K0.5A 0.5 15 0.5 ±1.5 340x240
FKB 15K1A 1 15 1 ±2 340x240
FKB 30K1A 1 30 1 ±3 340x240
FKB 60K1A 1 65 1 ±3 340x240


Bench scale KERN FKT

  • Touchscreen industrial scale with enormous range of functions, also with EC type approval [M]
  • 80 memories for each operation mode, e.g., for checkweighing, PRE-TARE, reference weight, target weight when dispensing etc.
  • Convenient recipe weighing: 99 recipes each with 10 components each can be stored in plain text. If one recipe ingredient is overweight, then the practical recipe adjustment function for when dosages are exceeded automatically calculates the new target weights of the other ingredients. The actual and target values and the proportionate percentage can then be printed. The recipes can be generated easily in an Excel list at the PC and transferred to the balance using the RS-232 interface. Alternatively, the recipes can also be entered directly using the keypad
  • Multiplier function: recipes where the ingredients have been recorded as percentages can easily be multiplied when entering the new target weight is entered, target weight , which is ideal for the production of larger containers, bulk packs etc.
  • Rapid function for shortened stabilisation time with reduced readout
  • 16 print forms which can store up to 20 different information, such as, e.g., date, time, operator, item, net, tare, gross, PCS, target weight, PRE-TARE etc. The print forms can be generated easily in an Excel list in the PC and transferred to the balance using the RS-232 interface
  • Control outputs (optocoupler, digital I/O) to connect relays, signal lamps, valves etc. (35 V / 80 mA)
  • Hook for underfloor weighing of hanging loads standard for models with weighing plate size
  • For particularly high counting accuracy, there is an option of combining the KERN FKT range with a high-precision reference balance to make a counting system, please enquire
Model readout range reproductibility linearity plate
g kg g g mm
FKT 30K0.5L 0.5 30 0.5 ±1 340x240
FKT 60K1L 1 60 1 ±2 340x240
FKT 6K0.02 0.02 6 0.04 ±0.1 253x228
FKT 6K0.02L 0.02 6 0.04 ±0.1 340x240
FKT 16K0.05L 0.05 16 0.1 ±0.25 340x240
FKT 24K0.1 0.1 24 0.1 ±0.3 253x228
FKT 36K0.1L 0.1 36 0.1 ±0.5 340x240
FKT 65K0.2L 0.2 65 0.4 ±1 340x240
FKT 6K1LM 1 6 0.5 ±0.5 340x240
FKT 12K2LM 2 12 1 ±1 340x240
FKT 30K5LM 5 30 2.5 ±2.5 340x240
FKT 60K10LM 10 60 10 ±10 340x240


Bench scale KERN GAT

  • Easy-Touch bench scale
  • Thanks to the intuitive touchscreen concept and multi-lingual operation (DE, GB, IT, ES, PT, NL, FI, PL, RUS, SE, CZ) the balance can be used easily by inexperienced users, straightaway. For the professional user, the balance provides convenient functions which permit a high level of individualisation and which thereby make operation significantly easier and quicker
  • Through a large memory, e.g. for item master data, weighing data etc. the balance is the ideal solution when working with a large range of goods or where there are high requirements for record keeping and documentation
  • Thanks to the high level of connectivity it is easy to connect barcode readers for item recognition, USB sticks for data storage or data transfer to PCs and networks using RS 232 or USB and this means that this range can be used for many different functions in Industry 4.0 applications
  • Convenient recipe weighing
  • Standard use: Direct input of the recipe ingredients in grammes or percent
  • Professional use: Recall of items from the database with all relevant additional data such as target value, tolerances, name, tare container weight. Which means a super-fast sequence when recipe-weighing: Select recipe – Weigh – done!
  • A graphic signal helps when dosing individual recipe ingredients. An information column on the lefthand edge of the screen allows you to see at a glance which ingredients have already been weighed (proportionately)
  • Classifying: Similar objects are automatically classified according to their weight into predetermined classes. Das Klassifizierungsergebnis wird grafisch im vertikalen Bargraph und als großes Zeichen (Klasse) zentral dargestellt. Damit ist die Klasse schnell und fehlerfrei erkennbar
  • AUTO-PRINT function: Automatic printing of the weighing when the weighing value remains unchanged. The print function as well as the content of the print-out can be adjusted individually depending on the operating mode
  • Remote control of the balance using external switches or computers through KCP (KERN Communication Protocol), compatible with the large SICS command set (Standard Interface Command Set, Level 0/1)
  • The battery compartment of the device can be opened easily, which means it is possible to change the batteries without having to use any tools or break any verification seal labels etc.
  • Convenient piece-counting function
  • Standard use: Direct input of the reference quantity or the reference weight
  • Professional use: Recall of items to be counted from the database with all relevant additional data such as piece weight, name, reference quantity, tare container weight, tolerances. Which means a super-fast sequence when counting: Select item – Load – Count – done!
  • Fill-to-target function: target quantity or target weight can be programmed, e.g. for checkweighing. A colour bar graph shows whether the quantity removed is below the limit (blue), is within the specified tolerances (green) or is above the limit (red). This means that the same target value can always be counted and picked, efficiently and accurately
  • Convenient weighing with tolerance range (Checkweighing)
  • Standard use: Direct input of the tolerances in grammes or percent
  • Professional use: Recall of items from the database with all relevant additional data such as piece weight, name, reference quantity, tare container weight, tolerances. Which means a super-fast sequence when portioning, dosing or sorting: Select item - Load - Check - done!
Model readout range plate
g kg mm
GAT 6K-4 0.2 6 300x225
GAT 10K-4 0.5 15 300x225
GAT 30K-3 1 30 300x225


Bench scale KERN FOB

  • Verifiable stainless steel balance with special protection against humidity with EC type approval [M]
  • Stainless steel design of the housing and weighing plate. Its smooth surfaces make it simple to clean
  • Increased protection against humidity by means of waterproof silicone sealing of the load cell, electronics and soldering joints
  • High mobility: thanks to compact, flat construction, it is suitable for use in several locations (kitchen, sales office, market stall etc.)
  • Net/gross weight: to control the consumed weighing range at the touch of a key
Model readout range plate
g kg mm
FOB 1.5K0.5 0.5 1.5 175x165
FOB 3K1 1 3 175x165
FOB 15K1L 1 15 215x215
FOB 6K2 2 6 175x165
FOB 30K2L 2 30 215x215
FOB 1K1M 1 1 175x165

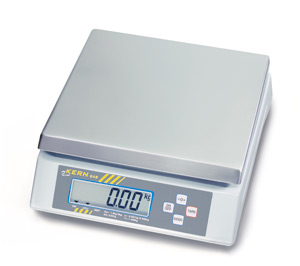

Bench scale KERN GAB-N

  • Checkweighing and portioning scale, also with EC type approval [M]
  • Compact size, practical for small spaces
  • High mobility: thanks to battery operation (optional)
  • Weighing with tolerance range (checkweighing): Input of an upper/lower limit value. A visual signal assists with portioning, dispensing or grading
  • Totalising of pieces when counting
Model readout range plate
g kg mm
GAB 6K0.05N 0.05 6 294x225
GAB 12K0.1N 0.1 1 294x225
GAB 30K0.2N 0.2 30 294x225
GAB 6K1DNM 1/2 3/6 294x225
GAB 15K2DNM 2/5 6/15 294x225
GAB 30K5DNM 5/10 15/30 294x225


Bench scale KERN GAB-P

  • Checkweighing and portioning scale with integrated printer and EC type approval [M]
  • Precise bench scale for applications (which require verification), where the weight values must be documented and archived through print outs or data transfer, such as, e.g. quantities obtained in stocktaking
  • The determined weight, quantity, totals, percentage etc. can be printed out with clearly date and time
  • Internal printer: Robust high-speed thermal printer. Fast and easy change of paper rolls thanks to innovative paper compartment construction
  • High mobility: thanks to battery operation, compact construction and low weight, it is suitable for use in several locations (production, warehouse, dispatch department etc.)
  • Compact size, practical for small spaces
  • Weighing with tolerance range (checkweighing): Input of an upper/lower limit value. A visual and audible signal assists with portioning, dispensing or grading
Model readout range plate
g kg mm
GAB 30K-4P 0.2 30 365x235
GAB 6K-3PM 1/2 3/6 365x235
GAB 10K-3PM 2/5 6/15 365x235
GAB 30K-3PM 5/10 15/30 365x235


Bench scale KERN WTB-N

  • Ideal for food industry, thanks to its IP65 protection and special checkweighing display
  • Suitable for the ever-increasing hygienic requirements in the food industry
  • IP65: Dust and spray protected (only when using rechargeable battery pack)
  • Second display on the rear of the balance
  • Recessed grips on the underside of the scale for easy transportation
  • Innovative weighing with tolerance range (Checkweighing): The colour of the display changes depending on the weight (too light/ok/too heavy) and is an aid to help with portioning dosing and grading
  • High mobility thanks to its rechargeable batteries (optional) and low weight
  • Compact size, practical for small spaces
Model readout range plate
g kg mm
WTB 1K-4N 0,2 1.5 260x200
WTB 3K-4N 0,5 3 260x200
WTB 6K-3N 1 6 260x200
WTB 10K-3N 2 15 260x200
WTB 30K-3N 5 30 260x200
WTB 1K-4NM 0,5 1,5 260x200
WTB 3K-4NM 1 3 260x200
WTB 6K-3NM 2 6 260x200
WTB 10K-3NM 5 15 260x200
WTB 30K-3NM 10 30 260x200


ADAM WBW balance

  • 5 weighing units (kg, g, lb, oz, lbs:oz)
  • IP66 rated for wash down
  • Check-weighing with low and high limits
  • Large backlit LCD display
  • Optional Rear Display
  • Precision load cell technology
  • Lightweight and portable
  • Rechargeable battery
  • AC Adapter
Model readout range plate
g kg mm
WBW 2 0.2 2 210×173
WBW 4 0.5 4 210×173
WBW 8 1 8 210×173
WBW 16 2 16 210×173
