Industrial controllers

All the controllers equiped with modern electronic and microcontrollers. All the Tecon controllers have a RS485 interface for communication with a PC. A specially designed software is available for communication with a PC (Siam). A new option is now available: communication in an ethernet network.
Temperature Controller

Temperature Controller TECON T131

  • PID controller, different parameters for heating and cooling
  • proportional band, integral time, lead time,relay interval-time, dead band between couling and heating
  • autotuning in heating conditions
  • 1 input for sensor (Pt100, thermocouple, 0/4-20 mA)
  • 2 relays outputs (max. 230 V, 2 A) or 24 V output in option (internal resistance 1 kohms)
  • analog output 0/4-20 mA or digital output (to send the measured value, setpoint, etc... to other devices)
  • analog or digital input (for external setpoint, external controller stating,...)
  • possibility to program a heating or cooling ramp
  • RS485 2 lines
  • dimension (BxHxD): 96x96x125 mm


Temperature Controller TECON T134

  • PID controller, different parameters for heating and cooling
  • proportional band, integral time, lead time,relay interval-time, dead band between couling and heating
  • autotuning in heating conditions
  • 1 input for sensor (Pt100, thermocouple, 0/4-20 mA)
  • 2 relays outputs (max. 230 V, 2 A) or 24 V output in option (internal resistance 1 kohms)
  • analog output 0/4-20 mA or digital output (to send the measured value, setpoint, etc... to other devices)
  • analog or digital input (for external setpoint, external controller stating,...)
  • programs: 16 steps for profiles
  • possibility to limit the output of the controller or to limit the speed of change for this output
  • RS485 2 lines
  • dimension (BxHxD): 48x96x125 mm


Temperature Controller TECON T202

  • PID controller, different parameters for heating and cooling
  • proportional band, integral time, lead time,relay interval-time, dead band between couling and heating
  • autotuning in heating conditions
  • 2 inputs for sensor (Pt100, thermocouple, 0/4-20 mA), for 2 different control loops (2 x cooling, 2 x heating), or input 2 only displayed
  • 2 relays outputs (max. 230 V, 2 A) or 24 V output in option (internal resistance 1 kohms)
  • 2 relays for alarms
  • 2 analog outputs 0/4-20 mA (to send the measured value, setpoint, etc... to other devices)
  • analog or digital input (for external setpoint, external controller starting,...)
  • programs: 16 steps for profiles
  • RS485 2 lines
  • dimension (BxHxD): 48x96x125 mm


Temperature Controller TECON T231

  • PID controller, different parameters for heating and cooling
  • proportional band, integral time, lead time,relay interval-time, dead band between couling and heating
  • autotuning in heating conditions
  • 2 inputs for sensor (Pt100, thermocouple, 0/4-20 mA), for 2 different control loops (2 x cooling, 2 x heating), or input 2 only displayed. It is also possible to use the difference input1-input2, or the maximum or the minimum of the 2 inputs
  • 2 relays outputs (max. 230 V, 2 A) or 24 V output in option (internal resistance 1 kohms)
  • 2 relays for alarms
  • 2 analog outputs 0/4-20 mA or digital output (to send the measured value, setpoint, etc... to other devices)
  • analog or digital input (for external setpoint, external controller starting,...)
  • programs: none
  • RS485 2 lines
  • dimension (BxHxD): 96x96x125 mm


Temperature Controller TECON T232

  • like Tecon T231, but possibility to program profiles (16 steps) and for 2 different control loops (2 x cooling, 2 x heating), or input 2 only displayed


Temperature Controller TECON T236

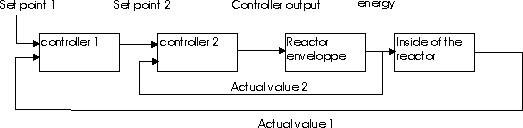

  • cascade controller, very usfull when the heat is not produced where it is used ( forexemple haeting of a chemical reactor through a enveloppe)
  • for sensitive application, there is the possibility to limit the controller output or limit the difference between the internal and external measured values
  • it can also be used as a conventional PID controller
  • 2 inputs for sensor (Pt100, thermocouple, 0/4-20 mA),
  • 2 relays outputs (max. 230 V, 2 A) or 24 V output in option (internal resistance 1 kohms)
  • 2 relays for alarms
  • 2 analog outputs 0/4-20 mA or digital output (to send the measured value, setpoint, etc... to other devices)
  • analog or digital input (for external setpoint, external controller starting,...)
  • programs: none
  • RS485 2 lines
  • dimension (BxHxD): 96x96x125 mm


Temperature Controller TECON T238

  • 8 PID controllers
  • 8 input for sensors (Pt100, thermoelements, 0/4-20 mA)
  • 2 digital inputs 24 V
  • Outputs: 8 relays (max. 230 V, 2 A)
  • 2 additional relays (max. 230 V, 1 A) for alarms
  • RS485 2 lines
  • dimension (BxHxD): 96x96x125 mm


Temperature Controller TECON T501 A

  • 2 PID controllers
  • Input for 2 sensors (Pt100, thermoelements, 0/4-20 mA)
  • 1 digital input 24 V
  • 1 analog input 0/4-20 mA
  • 2 relays outputs (max. 230 V, 2 A)
  • 3 additional relays (max. 230 V, 1 A)
  • 2 analog outputs 0/4-20 mA
  • Set point profile with 99 steps
  • RS485 2 lines
  • dimension (BxHxD): 96x96x125 mm


Temperature Controller TECON T530A

  • like Tecon T236, but possibility to program profiles (99 steps)


Temperature Controller TECON T572 for climate chamber

  • 2 PID controllers, one for the temperature, one for the humidity
  • 4 inputs for sensors
  • 10 relays outputs 220 V, 1 A
  • 3 digital inputs
  • 4 analog outputs
  • programs: 99 steps for temperature, humidity and light
  • dimension (BxHxD): 96x96x125 mm


temperature limiter

Security system, temperature limiter TECON T201

  • this system can supervise the controllers
  • if the temperature is outside of certain limits, it can switch off the heating devices
  • the controllers can still work
  • it has its own temperature sensor
  • it has an analog input to read the measured value of the connected controller. It can then compare the value of the controller with the value of its own sensor
  • RS485 2 lines
  • dimension (BxHxD): 48x96 x125 mm


Timer TECON T141

  • it can switch on 2 relays depending on a week program or a cyclic program
  • RS485 2 lines
  • dimension (BxHxD): 96x96 x125 mm


pH Controller TECON 590

  • 1 input for pH, mV or mA
  • 1 input for Pt100 (temperature correction)
  • 1 input for external setpoint
  • Input for 2 sensors (Pt100, thermoelements, 0/4-20 mA)
  • 2 digital outputs (relay) 230 V, 2 A
  • or 2 analog outputs 0/4-20 mA
  • Set point profile with 99 steps


Multichannel controller

Multichannel controller PAC-99X

compact, based on LINUX this controller is an ideal solution for applications where simultaneous measurement and regulation of numerous channels is required (max 8 control loops). PAC-99X contains up to 48 analog inputs, 16 relay /SSR outputs and 8 current outputs satisfy 0-20 mA standard. Controller is equipped with 3.5'' colour TFT display with touchscreen allowing elimination of faulty mechanical keyboards. The RS-485 interface with Modbus-RTU protocol is build in the device for basic communication features. There are also 2 USB ports available in the device (host for mouse or keyboard, and the second for device to the communication with PC MultiCon software). It can also store the data on a USB memory.

PAC-99X (CMC-99) is produced in 2 supply versions: 230V and 24V AC/DC. Additionally, supply output 24V DC / 200 mA for supplying of external sensors is mounted on the back panel.PAC-99X as industrial compact computer can be equipped with advanced communication module (Ethernet, second USB Host, two RS-485 and RS-232) and other types of inputs and outputs.

It can be equipped with different modules

modules name UI4, UI8, U 16, I16
description 4/8/16 current/voltage input with one common
range / resolution -2 to 13 V / 1 mV -2-30 mA, 1 uA
selectable range 0-5 V, 1-5 V, 0-10 V, 2-10 V 0-20 mA, 4-20 mA
precision 0.1 % at 25 °C 0.1 % at 25 °C
modules name TC4, TC8
description 4/8 thermoelement inputs
range / resolution -30 mV to 30 mV / 1 uV -120 mV to 120 mV / 4 uV
overload/input resistor 20 % / 1 MOhm 20 % / 1 MOhm
selectable range Type K,S,J,T,N,R,B,E, -25 to 25 mV, -100 to 100 mV
modules name RT4
description 4 inputs for resistance thermometer
range / resolution 0 to 325 Ohm / 0.01 Ohm 0 to 3250 Ohm / 0.1 Ohm
selectable range Pt100, Pt1000, Pt50, Pt500, Cu50, Cu100, Ni100,... 2,3,4 wires
modules name UN3
description 3 inputs for curent, voltage, thermoelement, resistance thermometer
range / resolution -1 to 12 V / 1 mV -2 to 30 mA / 1 uV
selectable range 0 to 5 V, 1 to 5 V, 0 to 10 V, 2 to 10 V 0 to 20 mA, 4 to 20 mA
precision 0.1 % at 25 °C 0.1 % at 25 °C
range / resolution -10 to 30 mV / 2 uV -10 to 120 mV / 4 uV
selectable range Type K,S,J,T,N,R,B,E, -25 to 25 mV, -100 to 100 mV
range / resolution 0 to 325 Ohm / 0.01 Ohm 0 to 3250 Ohm / 0.1 Ohm
selectable range Pt100, Pt1000, Pt50, Pt500, Cu50, Cu100, Ni100,... 2,3,4 wires
modules name D8, D16
description 8/16 digital input, 4 of them with the same common
range / resolution 0 to 30 V, UIn<1V= Low, UIn>4V= High
modules name FI2, FI4
description 2/4 current inputs with sum funktion(flowmeter) + 2/4 current inputs with common
range / resolution -2 to 30 mA/1 uA
selectable range 0 to 20 mA, 4 to 20 mA
precision 0.1 % at 25 °C
modules name FT2, FT4
description 2/4 Count inputs + 2/4 current input with common
range / resolution 0 to 30 V, UIn<1V= Low, UIn>4V= High, 0.1 Hz to 50 kHz
consumption 12 mA (24 V) / 2 kV isolation
values tachometer/counting, reset: internal/external/autoreset
range / resolution -2 to 30 mA/ 1 uA
precision 0.1% at 25 °C
modules name S8, S16
description 8/16 SSR with PWM function
max current 10 mA, max 50 mA/group of 8 with inernal power
max voltage with intenal power > 8 V
external power 10 to 30 V
PWM period 0.1 to 1600 s, resolution 0.1 s
PWM frequency 5 kHz, 20 us/ 0-100 %, resolution 15 bits
modules name R45, R81
description 4 SPDT Relay 8 SPST Relay
modules name IO2, IO4
description 2/4 passive analoge outputs
range, resolution 3 to 22 mA, 50 mA fuse, 12 bit
precision 0.1% at 25 °C


Multichannel controller PAC-141X

like the Multichannel controller PAC-99X but with 5.7 '' TFT Display.

Warmchannel temperature controller Vetter VRC

  • For mold and plastic industry
  • Housing for 2 to 12 control loops / case
  • Up to 4 housing with a total of 48 loops may be connected to a control system.
  • Option: 8 " Touch Panel PC for advanced control and diagnostics
  • PID2 control algorithm, heating output with phase control in 0.24VAC steps
  • Digital display of actual, setpoint, alarm status, failure reason and manual operation.
  • Zones one by one on and off
  • Drying of wet heating elements with short circuit verification
  • Switched output on a percentage
  • Very easy to use
  • Output for alarm
  • Input for standby
  • Standby switch on the housing


Low cost temperature controller ETC 902

  • Temperature controlling range: -50°C to 99° C
  • Display resolution: 1 °C/0.1 °C
  • Accuracy: NTC: ±0.5°C (-30°C-50°C), others ±1°C; PTC: ±2°C(-30°C-50°C), others ±3°C
  • Sensor type: NTC(-50°C to 120°C) PTC(-50°C to 150°C)
  • Power supply:230 VAC 50/60Hz
  • Rated current of relays: 8A/220VAC for heating and cooling
  • Ambient temperature: -15°C to 60°C, Relative humidity:20%~85% (No condensate)
  • Storage temperature: -15°C to 60°C
  • Size: Length 77× Width 34.5 × Depth 58 (mm)
  • Mounting size:Length 71 × Width 29 (mm)
  • Sensor wire length: 2 m (included)


Low cost temperature controller ETC 974 for cooling installations

  • ETC 974 is a temperature controller for middle and low temperature ventilated refrigeration system. Its unique design includes three universal relays for cold storage (compressor, evaporator fan and defroster), internal buzzer alarm, two probes (cold storage temperature probe and evaporator probe), three output: refrigeration, defrost and fan.
  • Probe type switch between PTC and NTC
  • Evaporator probe can be disabled
  • Display switch between Celsius and Farenheit.
  • Temperature measuring range: NTC: –50 to 110°C (-58 to 230°F, 10KOhm/25°C, B value 3435K); PTC: –55 to 140°C (-67 to 284°F) PTC(990Ohm/25°C,KTY81-121)
  • Temperature controlling range: -5°C to 55°C (23 to 131°F)
  • Compressor relay output: 8A
  • Defrost relay output: 8A
  • Fan relay output: 8A
  • Digital display: three digits +minus zone + status zone(refrigeration,defrost,fan and alarm)


pH / mV controller

pH / mV controller M2120

  • For DIN rail mounting
  • two-point controller
  • Measurement Range: 0-14 pH or -1000 to 1000 mV
  • Resolution: 0.01 pH or 1 mV
  • Accuracy: 0.01 pH or 3 mV
  • Input impedance: 1000 Gohm
  • temperature compensation with Pt100 or manual
  • Relay outputs: Potential-free
  • Contact load: Max 1 A per relay
  • power: 20-253 V, 50-60 Hz, or DC
  • 4-20 mA output option


pH / mV controller M3020

  • two-point controller
  • Measurement Range: 0-14 pH or -1000 to 1000 mV
  • Resolution: 0.01 pH or 1 mV
  • Accuracy: 0.01 pH or 3 mV
  • Input impedance: 1000 Gohm
  • Automatic or manual temperature compensation with Pt100
  • Relay outputs: Potential-free
  • Contact load: max 6 A, continuously 2 A at 230 V, inductive
  • Most power: 20-253 V, 50-60 Hz or DC, 3W
  • 4-20 mA output option
  • Logger function with USB sticks (Fat32)


pH / mV controller M3020R

  • Three-point controller (P Parameter)
  • Measurement Range: 0-14 pH or -1000 to 1000 mV
  • Resolution: 0.01 pH or 1 mV
  • Accuracy: 0.01 pH or 3 mV
  • Input impedance: 1000 Gohm
  • Automatic or manual temperature compensation with Pt100
  • Relay outputs: Potential-free
  • Contact load: max 6 A, continuously 2 A at 230 V, inductive
  • Most power: 20-253 V, 50-60 Hz or DC, 3W
  • 4-20 mA output option
  • Logger function with USB sticks (Fat 32)
