Sysmatec

Colony counter

automatic colony counter

Color QCount, automatic colony counter

Very easy to use, works right out of the box.

Very efficient, it can process up to 400 plates per hour. The lighting assures uniform illumination, enhance colony contrast. It differenciate overlapping colony clusters.

ColorCount Software automatically determines the threshold of the background color. It recognizes subtle color variations and can count each hue of one color or a range of shades as one color.

Stored data is GLP compliant. Each plate image is saved in a databank and can be reanalysed. Users can manually exclude area, add or delete colonies. Hand counted plates can also be entered in the databank. All edits are tracked with operator's identification, date, time and comments.

Technical parameters

Measurement time 1 sec
Resolution 0,15 mm
Illumination upper incident light, bottom transmitted light and dark field with polarization
Measurement modes pour, spiral and spread plates
Detection fully automatic with manual override
Count modes automated contour analysis and cluster detection (US patents 6243486 and 6381353), manual count, edit mode
Regulatory compliance complies with FDA 21 CFR Part 11 (electronic records, electronic signatures) and part 58 (Good Laboratory Pratice)
Data management external CPU, monitor, keyboard and mouse
Camera interline transfer progessive scan ccd video camera, 12 frames per seconde, digital output per IEEE1394A (FireWire), software controlled shutter speed
Warranty One year on workmanship and parts


QCount, automatic colony counter

Very easy to use, works right out of the box.

Very efficient, it can process up to 400 plates per hour. The lighting assures uniform illumination, enhance colony contrast. It differenciate overlapping colony clusters.

ColorCount Software automatically determines the threshold of the background color. Stored data is GLP compliant. Each plate image is saved in a databank and can be reanalysed. Users can manually exclude area , add or delete colonies. Hand counted plates can also be entered in the databank. All edits are tracked with operator's identification, date, time and comments.

Technical parameters

Measurement time 1 sec
Resolution 0,15 mm
Illumination upper incident light, bottom transmitted light and dark field with polarization
Measurement modes pour, spiral and spread plates
Detection fully automatic with manual override
Count modes automated contour analysis and cluster detection (US patents 6243486 and 6381353), manual count, edit mode
Regulatory compliance complies with FDA 21 CFR Part 11 (electronic records, electronic signatures) and part 58 (Good Laboratory Pratice)
Data management external CPU, monitor, keyboard and mouse
Camera interline transfer progessive scan ccd video camera, 12 frames per seconde, digital output per IEEE1394A (FireWire), software controlled shutter speed
Camera lens 12 mm, f:1.4
Power input 100/240 V, 50/60 Hz
Dimensions 34 cm x 32 cm x 46 cm (W x D x H)
Warranty One year on workmanship and parts


PetriScan, automatic colony counter

For dry film counting.

High Throughput: can process 4 films in less than 1 minute.

Cost effective: increase productivity, reduce errors, the personnel has freeing time for other responsibilities.

PetriScan Software automatically determines the threshold of the background color by using gray scale analysis. Stored data is GLP compliant. Each film image is saved in a databank and can be reanalysed. Users can add or delete colonies. All edits are tracked with operator's identification, date, time and comments.

Technical parameters

Measurement time about 40' sec scan time, 2 sec count time
Detection automatic with manual override
Count modes automated contour analysis and cluster detection, manual count, edit mode
Dilution series user defined dilution corrections
Results diplay, store, print and export up to 11 data items for each plate
Bar Code code 128 format for sample identification
Regulatory compliance complies with FDA 21 CFR Part 11 (electronic records, electronic signatures) and part 58 (Good Laboratory Pratice)
Scanner Flatbed, CCD scanning element, USB interface
Data management external CPU, monitor, keyboard and mouse
Power input 100/240 V, 50/60 Hz
Dimensions 31 cm x 58 cm x 13 cm (W x D x H)
Warranty One year on workmanship and parts


Spiral plater

Plating System Autoplate

For spiral plating.

Advantages:

  • provides uniformity and reproductibility
  • provides isolated colonies for sub-culturing
  • simplifies plate counting
  • reduces or eliminates serial dilutions
  • reduces disposable pipettes, plates, media and tubes

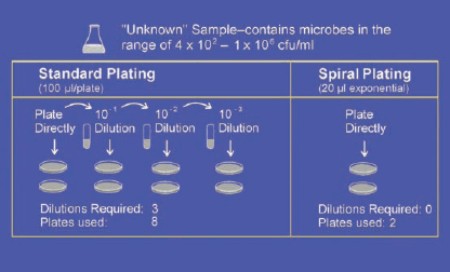

A syringe-driven dispensing stylus deposits sample onto a rotating agar plate. The stylus moves from the near-center outward while the plate rotates as the syringe drives downward, depositing less sample as the stylus moves outward. This unique plating action eliminates most serial dilutions by continuously reducing the number of microbes placed along the spiral track.

Brochure


Solid Sample Preparation for Microbiology, BagSystem

The BagMixer® is a solid sample preparation system which blends the sample materials with a stomach-like action in a sterile bag. The bag is repetitively squeezed to break up the contents. Special filter bags automatically separate the juice or inoculum from the solids. A range of accessories facilitate bag handling and storage.

Advantages:

  • Silent blending in a sterile bag preserves cells for better microbiological analysis
  • Variable time and speed of blending
  • No contact between the sample and the machine keeps the unit clean.
Specifications MiniMix® BagMixer® 400 JumboMix® 3500
Capacity 5 to 100 ml 50 to 400 ml

400 to 3500 ml

Strokes/sec 8 6,7,8 or 9 3 - 6
Timer 10 - 360 secs 30- 210 secs 30 - 210 secs
Size L x W x H mm 350 x 200 x 200 400 x 215 x 240 410 x 500 x 380
Power 220V/50Hz or 110V/60Hz 220V/50Hz or 110V/60Hz 220V/50Hz or 110V/60Hz
Net Weight 8 kg 17 kg 35 kg


Gravimetric Diluter Lab Pro

The LabPro accurately and reliably automates preparation of samples. It can be used to dilute random-weight samples gravimetrically, as well as dispense liquids in predefined volumes.

A LabPro pump is interfaced with a stand-alone, Explorer balance. The controller calculates the amount of diluent to be dispensed in the sample container, based on the sample weight and userdefined diluent/sample weight ratio. For example, a weight ratio of 9.00 applied to a sample weight of 11.0. grams will result in dispensing 99.0 grams of diluent, to produce a 1:10 dilution of the sample.

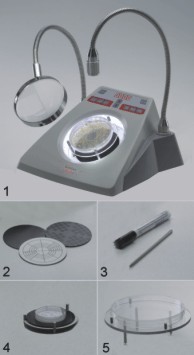

Colony counter Manual Colony counter Schuett Count
  • illumination: from below, from the side and from the top (optional)
  • for Petri dishes or nutrient disks with Ø 90 mm, Ø 60 mm or Ø 150 mm (optional)
  • high transparency of colonies reached by LED-light source - practically no heat transferred to the sample
  • light intensity, pressure sensitivity for count and acoustical counting signal adjustable
  • counting impulse is realized by marking the colonies with an ordinary felt-tip marker pen. An acoustical signal confirms each sound its sound level is individually adjustable
  • data transfer via USB
  • 4-digit LED-display (0-9999) and a clearly arranged keypad for all controls.

Technical Data

  • Dimensions (w x h x d): 260 x 130 x 250 mm
  • Weight: 1.5 kg
  • Power: 100-240 V / 50-60 Hz
  • Power adapter: 5 V DC, 2100 mA, 20 W
