Gas analyser / Gasmonitor

other gas analyser here: online gas analser, CO2/O2 Measurement

Gas monitor

Gas monitor Gasman

Personal monitor for oxygen, toxic and flammable gas, easy to use, robust.

Gas Range Alarms
flammable 0-100 % LEL 20 % LEL
oxygen 0-25 % 10/23,5 %
hydrogen sulfide 0-50 ppm
carbon monoxyde 0-500 ppm
carbon dioxyde 0-5 % v/v
sulfure dioxide 0-10 ppm 1 ppm
chlorine 0-5 ppm 0,5 ppm
nitogen dioxide 0-10 ppm 1 ppm
ammonia 1-50 ppm 25 ppm
ozone 0-1 ppm 0,1 ppm
hydrogen 0-1000 ppm -
hydrogen cyanide 0-25 ppm 5 ppm
hydrogen chloride 0-10 ppm 1 ppm
hydrogen fluoride 0-10 ppm 1 ppm
phosphine 0-5 ppm 0,2 ppm
fluorine 0-1 ppm 0,1 ppm
ethylene oxide 0-10 ppm 5 ppm
nitric oxide 1-100 ppm 25 ppm

specification

  • typical respons time: 10 s fo oxygen, 20 s-30 s for the other gas
  • interchangeable module sensor
  • display: concentration, battery remaining time, next calibrating or service
  • alarms: 95 dBA sound, visual with red/blue flashing leds
  • datalogging: about 5000 dated datas or events, trnasfert to a computer over RS232 is possible
  • operating time: bout 12 h with battery (charger in option)
  • operating conditions: -20 °C to 55 °C, 0-99 % rH
  • approval: ATEXII 1G ia EEx IIC T4 toxic/oxygen and ATEXII 2G iad EEx IIC T4 flammable, EN50014, EN500020, EN50018, 94/9/EC
  • supplied with an integral pocket clip
  • options: aligator clip, universal harness plate, shoulder strap, chest haness, aspirator assembly, harnais de sécurité, sacoche, ensemble d'aspiration, 220V charger, vehicle lighter lead, 5 way multicharger


Gas monitor Tetra

Personal monitor for oxygen, toxic and flammable gas, easy to use, robust, with the possibilty to measure 4 gases

Gas Range Alarms
flammable 0-100 % LEL 20 % LEL
oxygen 0-25 % 10/23,5 %
hydrogen sulfide 0-50 ppm
carbon monoxyde 0-500 ppm
sulfure dioxide 0-10 ppm 1 ppm
chlorine 0-5 ppm 0,5 ppm
nitogen dioxide 0-10 ppm 1 ppm
ammonia 1-50 ppm 25 ppm
ozone 0-1 ppm 0,1 ppm
hydrogen 0-1000 ppm -
hydrogen cyanide 0-25 ppm 5 ppm
hydrogen fluoride 0-10 ppm 1 ppm
phosphine 0-5 ppm 0,2 ppm

specification

  • typical respons time: 10 s for oxygen, 20 s for the other gases
  • interchangeable module sensor
  • display: concentration, battery remaining time, next calibrating or service
  • alarms: 95 dBA sound, visual with red/blue flashing leds
  • datalogging: about 5000 dated datas or events, trnasfert to a computer over RS232 is possible
  • operating time: bout 12 h with battery (charger in option)
  • operating conditions: -20 °C to 55 °C, 0-99 % rH
  • approval: ATEXII 2G iad EEx IIC T4, EN50014, EN500020, EN50018, 94/9/EC
  • supplied with an integral pocket clip
  • options: aligator clip, universal harness plate, shoulder strap, chest haness, aspirator assembly, harnais de sécurité, sacoche, ensemble d'aspiration, 220V charger, vehicle lighter lead, 5 way multicharger


Gas leak detector

Gas leak detector Testo 316-1

  • electronic gas leak detector with flexible probe, including battery and calibration protocol
  • the testo 316-1 gas leak detector quickly detects even the smallest leaks.
  • flexible measurement probe for hard to reach locations
  • optical and audible alarms signal when limits are exceeded (no concentration display)
  • topSafe case protects from dirt and impact (option)
  • DVGW approval
  • Meas. range 0 to 10,000 ppm CH4
  • 1st alarm limit from 200 ppm CH4
  • 2nd alarm limit 10.000 ppm CH4
  • Dimensions 190 x 57 x 42 mm


Gas leak detector Testo 316-2

The testo 316-2 is extremely userfriendly and ideally suited to fast check measurements thanks to its integrated pump, its optical presentation of the gas concentrations detected, and the integrated rechargeable battery.

  • Optical and audible alarm with bar display for increasing and dangerous gas concentrations
  • Trend display shows maximum leakage
  • Integrated pump
  • Flexible measurement probe for inaccessible places
  • Earphone connection for secure leakage localization in loud surroundings
  • High duration of use thanks to rechargeable battery

Meas. range

  • 10 ppm to 4,0 Vol. % CH4
  • 10 ppm to 1,9 Vol. % C3H8
  • 10 ppm to 4,0 Vol. % H2

1st alarm limit

  • 200 ppm CH4
  • 100 ppm C3H8
  • 200 ppm H2

2nd alarm limit

  • 10.000 ppm CH4
  • 5.000 ppm C3H8
  • 10.000 ppm H2

Dimensions: 190 x 57 x 42 mm


CO monitor

CO monitor Testo 317-3

The testo 317-3 CO monitor detects the presence of carbon monoxide in the surrounding area and warns the user both visually and audibly about dangerous gas concentrations e.g. when installing and servicing gas heaters.

  • Measurement range: 0 to +1999 ppm
  • Resolution: 1 ppm
  • Accuracy: ±10 ppm (0 to +99 ppm), ±10 % (+100 to +499 ppm), ±20 % ( >+500 ppm)
  • Reaction time (t90): 40 s
  • Battery life: 150 h (with beeper switched off)
  • Operating temperature: -5 to +45°C


EL-USB-CO

  • Carbon Monoxide (CO) Data Logger with USB Interface0 to 1000 ppm CO measurement range
  • Stores up to 32,510 measurements
  • User-programmable warning threshold with bright visual and audible warnings
  • USB interface for set-up and data download
  • Expected sensor life: 4 years
  • Supplied with replaceable internal lithium battery and Windows control software

The EL-USB-CO is a professional measuring instrument, designed to record Carbon Monoxide (CO) gas levels for later analysis. It is not an alarm/safety/warning device.


CO2 gas analyser DHM1200

  • NDIR (non-dispersive infrared) waveguide technology, 5 years working capacity
  • Key query operation, MAX / MIN / AVG value available
  • CO2 Measuring Range: 0 to 2000 ppm, 0 to 5000 ppm, 0 to 10000 ppm
  • Accuracy: ±70 ppm , ±40 ppm
  • Resolution: 1ppm
  • Sampling Interval: 2s
  • Working Temperature: -30 °C to 70 °C , Best fit 0 °C to 50 °C
  • Storage Temperature: -50 °C to 90 °C
  • ESD Protection: ±25KV
  • Auto Power Save: 5 min
  • Battery: AAA battery × 2
  • Battery Lifetime: " hours(Without alarm)
  • IP Class: IP50
  • Dimensions: 166×58×20mm
  • Display Area: 47×16mm
  • Weight 110g


O2 analyser

Gas Analyser G100

  • CO2 analyser specifically designed to monitor CO2 for the verification of incubators in research and pharmaceutical markets.
  • CO2 range :0 - 20%
  • Accuracy ± (1% range +2% of reading) at reference conditions
  • Operating conditions: 5 ºC - 40 ºC, Relative humidity 0-95% non condensing (RH Probe 0-100% non condensing), Barometric pressure ± 200 mbar from calibration pressure

Options for:

  • O2 0-100%
  • Dual temperature probes 0 - 50°C
  • Data storage and download
  • Humidity Sensor 0-100%


CO2 datalogger

Gas Analyser with datalogger Sentinel CO2

  • Sensing Method: non-dispersive infrared (NDIR) absorption
  • Sampling Method: diffusion
  • Response Time: 30 sec to 2 min (user configurable)
  • Measurement period: user configurable
  • Measurement range: 0 to 2000ppm, Accuracy: ± 50ppm ± 3% of measured value
  • Non Linearity: <1% of FS
  • Internal Relative Humidity: Range = 0-100% RH, Resolution = 0.04% RH typical, Accuracy= ± 3.0% RH max
  • Internal Ambient Temperature: -10 °C to 60 °C, Resolution: 0.01°C typical, Accuracy: ±0.4°C max (between 5°C and 60°C)
  • uses the existing Wi-Fi infrastructure
  • full sensor audit trail
  • data can be viewed remotely from any computer using a web browser
  • Sensor units are battery operated therefore portable. Data Storage At least 10 days of sensor data at sampling rate of once per minute.
  • Email or cell phone alerts when sensor crosses set threshold values (depending on Software version)
  • Operating temp. range: -10°C to +60°C, Operating humidity range 0% RH to 90% RH non-condensing
  • Typical power emission: 33 mW


CO2 datalogger

Data Logger for Temperature Humidity and Carbon Dioxide MINI-THCO2

Large-screen display of temperature, humidity and carbon dioxide, with battery, memory, recording status show together

High precision, mass memory for long-term logging

Resistant to water and dust, suitable for cold chain systems of fresh food, fruit, vegetables or wine

Suitable for agriculture research, greenhouse cultivation and other applications

  • T Measuring Range: -30°C to 70°C,-40°C to 85°C
  • T Accuracy ±0.5°C, ±0.3°C
  • T Resolution 0.1°C
  • RH Measuring Range 0% to 100%RH
  • RH Accuracy ±3%RH (10% to 85%RH) / other range ±5%RH(Testing Environment 23°C±2°C) / ±2%RH(High-precision version)
  • RH Resolution 0.1%RH
  • CO2 Measuring Range 0 to 10000ppm
  • CO2 Accuracy ±70ppm , ±40ppm
  • CO2 Resolution 1ppm
  • Memory Size 10 000 / 20 000 units
  • Alarm High level and low level , Display+beep+backlight , support alarm mark
  • Sampling Interval 2s, 5s, 10s, 30s, 60s, 255s
  • Logging Interval 2seconds to 24hours
  • Start with Delay Time 1 to 120s
  • Start Mode Key operation
  • End mode Key operation
  • Timing Start / End Random start / End with format YYMMDD HHMMSS
  • Storage Temperature -50°C to 90°C
  • ESD Protection ±25KV
  • Interface Mini USB2.0
  • Battery 3.6V lithium battery ×1
  • Battery Lifetime about 100 hours
  • Software ANALYSIS 3
  • IP Class IP64
  • Sensing Probe IR CO2 sensor + high precision temperature and humidity probe
  • Dimensions 86.2×64.2×25.4mm
  • Display Area 41×30mm
  • Housing ABS+PC,flame-retardant,toxicity and halogen free
  • Weight 96g


Mesure du radon

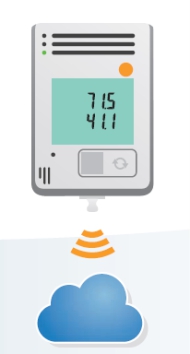

WiFi data logger with display and integrated sensors for temperature, humidity, CO2 and atmospheric pressure testo 160 IAQ

Indoor air quality has a huge influence on people's health and well-being. Stale indoor air can lead to tiredness, loss of concentration and discomfort. Reliable monitoring of indoor air quality with the WiFi data logger testo 160 IAQ. The data logger can for example be used in schools, nursery schools, conference rooms, open-plan offices, auditoriums or museums – in short: in rooms where a lot of people gather.

The easy-to-use WiFi data logger testo 160 IAQ is ideal for monitoring indoor air quality. Thanks to its sensors for temperature, humidity, CO2 and atmospheric pressure, it accurately determines the ambient conditions in each room.

Particularly user friendly: Coloured LEDs on the data logger indicate the air quality using the traffic light principle. The CO2 limit values can be determined individually. The LEDs are switched off in battery mode in order to ensure longer battery lives.

The following values can be read off the logger display:

With mains operation: CO2 concentration and alternately temperature and humidity. The atmospheric pressure values are not shown on the logger display, however they are available in the Cloud

In battery mode: CO2 concentration and temperature. The data for humidity are not displayed – because that ensures longer battery lives

All measurement data are stored by the data logger directly in the Testo Cloud via your WLAN. This means you can also document and analyze your measurement data over a longer period of time.

If limit values are exceeded, you will be notified immediately by e-mail or (optionally) SMS thanks to the alarm function. You can access all measuring values and analysis functions any time and anywhere with your internet-capable smartphone, tablet or PC.

Humidity - Capacitive

  • Measuring range: 0 to 100 %RH (non-condensing)
  • Accuracy: ±2.0 %RH at +25.0 and 20 to 80 %RH, ±3.0 %RH at +25.0 and < 20 and > 80 %RH; ±1.0 %RH hysteresis
  • ±1.0 %RH / year drift
  • Resolution: 0.1 %RH

Absolute Pressure

  • Measuring range: 600 to 1100 mbar
  • Accuracy: ±3 mbar at +22 °C
  • Resolution: 1 mbar

Ambient CO₂

  • Measuring range: 0 to 5000 ppm
  • Accuracy: ±(50 ppm + 3 % of mv) at 25 °C
  • Without external power supply: ±(100 ppm + 3 % of mv) at 25 °C
  • Resolution: 1 ppm

Temperature

  • Measuring range: 0 to +50 °C
  • Accuracy: ±0.5 °C
  • Resolution: 0.1 °C

Dimensions: 117 x 82 x 32 mm (LxWxH)

Operating temperature: 0 to +50 °C

Protection class: IP20

Communication rate/ measurement rate: Dependent on Cloud licence; Basic: 15 min … 24 h / Advanced: 1 min … 24 h

WLAN Connectivity: supported wireless LAN standards: IEEE 802.11 b/g/n and IEEE 802.1X; Possible encryption methods: WPA2 Enterprise: EAP-TLS, EAP-TTLS-TLS, EAP-TTLS-MSCHAPv2, EAP-TTLS-PSK, EAP-PEAP0-TLS, EAP-PEAP0-MSCHAPv2, EAP-PEAP0-PSK, EAP-PEAP1-TLS, EAP-PEAP1-MSCHAPv2, EAP-PEAP1-PSK, WPA Personal, WPA2 (AES), WPA (TKIP), WEP

Alarm function: LED (traffic light function: red, yellow, green)

Battery life: 1 year

Display type: LCD (Liquid Crystal Display)

Power supply: 4 x AA batteries 1.5 V, alternatively mains unit via USB connection

Interface: USB

Radio range: 100 m

Memory: 32,000 Measuring values / Sum of all channels

Weight: 269 g

Dimension display: 55 x 42 mm

Delivery Scope

  • WiFi data logger testo 160 IAQ
  • Including free Cloud access (Basic functionality)
  • USB mains unit
  • USB interface cable
  • Wall bracket, including tool and adhesive strip
  • QR code sticker
  • Calibration protocol
  • Short instructions


 air quality monitoring

Portable Handheld AQ Incuba – CO2 Incubator Air Quality Monitor

provides the latest technology and flexibility of Incubator Monitoring & Real-Time Data-Logging for Air Quality Analysis for a variety of Incubators.

  • CO2 Sensor Range: 0-5 %, 0-10 % or 0-20 %
  • % RH, Ambient Temperature, Barometric Pressure
  • Upgradeable to Add Oxygen (O2) for the range 0-25%
  • Moisture Removal System
  • REAL-TIME Continuous Data Logging for Graphs, Data Review, IAQ reports
  • Wireless Communications with Bluetooth
  • Sampling Hose
  • Continuous Active Internal Sampling Pump
  • AQ Gas® Real-Time Data Logging Software + USB cable inlcuded
  • Light Weight, Durable, and Easy– to– Transport Design
  • Large Internal Memory
  • Li-Ion Rechargeable Battery
  • Easy to Use Menu System
  • Differential Temperature with TcK Connection
  • Optional Wireless Remote Printer
  • Factory Calibration Certificate
  • Easy Built-in, Menu-driven calibration procedure


 air quality monitoring

Portable Handheld AQ PRO Monitor

for air quality monitoring

real time data logging function

bluetooth communication

every device can measure up to 6 parameters to choose between:

  • relative humidity: 5-95 %RH, accuracy +/- 2 % RH
  • temperature: -40 to 125 °C, accuracy +/- 0.4 °C between 0 and 60 °C
  • barometric pressure 260-1260 mbar, accuracy +/- 2 mbar
  • differential pressure +/- 100 mbar, accuracy +/- 1 mbar
  • formaldehyde 0-10 ppm (resolution 1 ppb, accuracy 2 % +/- 30 ppb)
  • O2: 0-25 %
  • CO2: 0-5000 ppm
  • CO: 0-10 ppm
  • H2S: 0-100 ppm
  • NO: 0-250 ppm
  • NO2: 0-20 ppm
  • SO2: 0-20 ppm

included with the device

  • Li-Ion Battery & AC Charger
  • Factory Calibration Certificate
  • User Manual in english
  • Datalogger (manually or automatic, storage for 2000 values)
  • REAL-TIME Data Logging Software
  • PC Software included
  • Vinyl Carrying Case

Why to measure H2S (hydrogen sulfide) ? Hydrogen sulfide gas reacts with the moisture to form caustic sulfuric acid (H2SO4), which corrodes the infrastructure of sewage system. This corrosion leads to the need for costly pipe repairs, and increases the likelihood that additional hydrogen sulfide will be released into the air near offices and homes.


Portabe Handheld VOC+ formaldehyde Monitor

for air quality monitoring

real time data logging function

included parameters: relative humidity (5-95 % RH), temperature (-40 to 125 °C), barometric pressure (260-1260 mbar), differential pressure (+/-20 mbar), air velocity (0-90 m/s)

bluetooth communication

every device can measure 1, 2 or 3 parameters to choose between:

  • VOC (volatile organic component) 2 different version, 0-20 ppm or 0-200 ppm
  • formaldehyde 0-10 ppm
  • O2
  • CO2
  • CO
  • H2S
  • NO
  • NO2
  • SO2

included with the device

  • Li-Ion Battery & AC Charger
  • Factory Calibration Certificate
  • User Manual in english
  • Datalogger (manually or automatic, storage for 2000 values)
  • REAL-TIME Data Logging Software
  • Vinyl Carrying Case


Portable Indoor Air Quality Monitor AQ Expert

REAL-TIME Continuous Data-Logging

Internal Memory (2000 values)

Optional Handheld Probe

Wireless Communications with Computer & Remote Printer

every device can measure up to 11 parameters to choose between:

  • relative humidity: 5-95 %RH, accuracy +/- 2 % RH
  • temperature: -40 to 125 °C, accuracy +/- 0.4 °C between 0 and 60 °C
  • barometric pressure 260-1260 mbar, accuracy +/- 2 mbar
  • differential pressure +/- 100 mbar, accuracy +/- 1 mbar
  • air velocyity (calculated, with Pitot tube): 0-300 ft/s
  • VOC 2 different version, 0-20 ppm or 0-200 ppm
  • formaldehyde 0-10 ppm
  • O2: 0-25 %
  • O3 (Ozone): 0-5 ppm
  • CO2 0-500 ppm or 0-20 %
  • CO: 0-200 ppm
  • H2S: 0-100 ppm
  • NO: 0-250 ppm
  • NO2: 0-20 ppm
  • SO2: 0-20 ppm

included with the device

  • Li-Ion Battery & AC Charger
  • Factory Calibration Certificate
  • Datalogger (manually or automatic, storage for 2000 values)
  • User Manual in english
  • REAL-TIME Data Logging Software


CO2 detector CF8-D / W-IN

The model IN (Incubator) is suitable for measurement and ventilation control in incubators or climate chambers.

CO2 measurement range: 0-3% vol (0 to 30 000 ppm)

CO2 Accuracy: ± 200 ppm

Output 1 (0-3% CO2 vol): 2 to 10 VDC or 4 to 20 mA

Output 2 (0-2% CO2 vol): 0 to 5 VDC or 0 to 10 mA

Range: 0 to 50 ° C / 0 to 95% RH

Dimensions 142 x 84 x 46 mm - Ø 40 x 102 mm

Power 16-29 VDC / AC

Protection class IP IP5

Maintenance: Not required for normal indoor applications. Some industrial applications require an annual calibration.

Longevity:> 15 years


Contact

Top

Sysmatec
Oberdorfstrasse 51
CH 3930 Eyholz
tel + 41 27 946 80 18
fax + 41 27 946 86 42
info@sysmatec.ch
