Incubator

Incubator

Thermostatically controlled incubators

Incubators for a wide range of applications

The CFC-free thermostatically controlled incubators from are designed to ensure continous temperature control in a wide range of applications, such as:

  • 20 °C BOD determination
  • 4 °C storage of waste water sample
  • 25 °C enzyme activity (TTC-test)
  • 37 °C colony count

The maintenance-free cabinets are suitable for reliable temperature control in a liquid sample over the range of 2 to 40°C (± 0.1°C). A fan in the upper portion provides good temperature distribution

The temperature control unit is available as a separate retrofit component for refrigerators without a freezer compartment.

The control range extends from or 2°C to 40°C in 1°C steps. The control unit is supplied ready for connection. 230 V / 50 Hz.

TC 135 S: with standard door, 230 V / 50 Hz, powerful cooling, integrated heating, 3 metal racks + 1 bottom grid + 4 sockets, Consumption: approx. 1.35 kWh / 24 h, I. D.: 513 W x 441 D x 702 H mm, Net capacity: approx. 135 l, O. D. : 600 W x 600 D x 850 H mm with work top, 600 W x 600 D x 819 H mm without work top, Weight: approx. 39 kg

TC 175 S: like TC 135 S but:3 metal racks + 1 bottom grid + 5 sockets, Consumption: approx. 1.23 kWh / 24 h, I. D. (approx.): 470 W x 440 D x 1062 H mm, Net capacity: approx. 175 l, O. D. (approx.): 600 W x 610 D x 1250 H x mm, Weight: approx. 51 kg

TC 255 S: like like TC 135 S but: 4 metal racks + 1 bottom grid + 9 sockets, Consumption: approx. 1.42 kWh / 24 h, I. D. (approx.): 600 W x 560 D x 1452 H mm, Net capacity: approx. 445 l, O. D. (approx.): 750 W x 730 D x 1640 H x mm, Weight: approx. 79 kg

TC 445 S: like TC 135 S but: 5 metal racks + 1 bottom grid, Internal dimensions: 652 D x 515 W x 1300 H, Content 395 liters, Overall dimensions: 752 D x 710 W x 1516 H, Weight : approx. 79.5 kg

TC 140 G: glas door, 230 V / 50 Hz, powerful cooling, integrated heating, 3 metal racks + 1 bottom grid + 4 sockets, Consumption: approx. 1.77 kWh / 24 h, I. D. (approx.): 513 W x 441 D x 702 H mm, Net capacity: approx. 140 l, O. D. (approx.): 600 W x 600 D x 850 H x mm with work top, 600 W x 600 D x 819 H mm without work top, Weight: approx. 48 kg

TC 256 G: likeTC 140 G but: 4 metal racks + 1 bottom grid + 7 sockets, Consumption: approx. 1.56 kWh / 24 h, I. D. (approx.): 470 W x 440 D x 1452 H mm, Net capacity: approx. 255 l, O. D. (approx.): 600 W x 610 D x 1640 H x mm, Weight: approx. 77 kg


Incubator

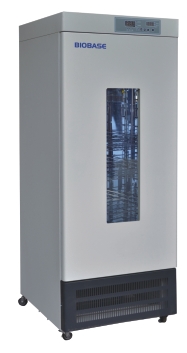

Incubator BJPXII

  • LCD display Controller.
  • Microprocessor PID temperature control: accurate and reliable.
  • Polished stainless steel chamber.
  • Round angle structure , easy to clean.
  • Power socket integrated inside for additional small equipment.
  • Illumination in the chamber.
  • Universal Castors for easy movement.
  • CFC-free environmental friendly refrigerant (R134a)
  • Safety function: temperature protection threshold value can be set, Auto-off protection and alarm for abnormal situation. Parameters can be saved automatically when power off or system error
  • Temperature range: 0-65 °C
  • Shelves: 2 adjusatble pieces
  • Time range: 0-99 h 59 min
  • Power supply: 220V +/- 10 %, 50-60 Hz
BJPX-B80II BJPX-B150II BJPX-B200II BJPX-B250II BJPX-B300II BJPX-B400II
Capacity (L) 80 150 200 250 300 400
Temp. fluctuation (°C) +/- 1 +/- 1 +/- 1 +/- 1 +/- 1 +/- 1
Temp. uniformity (°C) +/- 2 +/- 2 +/- 2 +/- 2 +/- 2 +/- 2
Int. dimensions (mm) 400x370x550 450x420x850 450x450x1000 480x490x1070 520x500x1170 580x540x1270
Ext. dimensions (mm) 540x570x1070 590x620x1370 590x640x1520 620x680x1590 660x690x1690 720x740x1790
Weight (kg) 85 120 138 147 157 170


Incubator

Lab incubator type ACE

Microprocessor control (with timing function)

Interior of oven is made of specular steel by argon-arc-welding techniques, and the exterior of oven is made of high-quality steel sheet.

Microprocessor PID temperature controller with temperature control protection, digits display and timing function ensures a precise and reliable temperature control.

Hot-air circulating system consists of a fan keeping running under a high temperature and proper air ducts to ensure a uniform distribution of temperature in chamber.

Independent alarm system for temperature-limiting ensures experiments run safely (Option)

Recorder and printer are options which can print or record setting parameters and tracing variation curves of temperature. (Option)

Power: 220 V, 50/60 Hz

Temperature range: room temperature + 5 to 65 °C

Temperature uniformity: +/-2.5 °C

Temperature fluctuation: <+/-0.5 °

ACE9272 ACE9162 ACE9082
Input power (W) 570 380 280
Int. dimensions (mm) 600×600×750 500×500×650 400×400×500


Incubator

Portable incubator AE-PI

It is designed for personal uses in storing sample at low temperature or incubating samples at temperature ranging from 5°C to 60°C, doing experiment at different setting temperatures.

  • The incubator employed the Peltier technology which is capable of heating and cooling.
  • The incubator can be carried out and plug into the car cigarette outlet.
  • Temperature range: 5 to 60 °C
  • Temperature accuracy: +/- 0.2 °C
  • Temperature uniformity: +/- 0.5 °C
  • Temperature stability: +/- 0.2 °C
  • Temperature increment: 0.1 °C
  • Portability: handle and cigarette plug included
  • Power: 60 W
  • Operating environment: 4 to 60 °C
AE-PI-100 AE-PI-200 AE-PI-300
Caoacity 18 L 20 L 25 L
Timer 1085 hours none 1085 hours
Time resolution 1 s 1 s
Max temperature steps 5 none 5
Calibration capability ja nein ja
Internal dimensions 19x27x35 cm 26x22x35 cm 27x22x35 cm
External dimensions 30x35x46 cm 32x36x45 cm 34x41x48 cm
Weight 6 kg 7 kg 8 kg


Incubator

Portable incubator ComfyTemp

This compact incubator has a transprent door and a chamber light. It uses a Peltier element for cooling and heating. It can be connected to a car battery with the cigarette connector.

  • Temp. range 5°C to 60°C
  • Temp. accuracy ± 0.2°C
  • Temp. uniformity ± 0.5°C
  • Temp. stability ± 0.2°C
  • Temp. increment 0.1°C
  • Timer 1,080 hours (45 Days)
  • Timer resolution 1 second
  • Max. steps of temp. 5 Operating
  • Environment 4°C (cold room) to 60°C
  • Selection on heating and cooling Automatically Detected
  • Calibration Capability YES
  • Platform Dimensions 27.5 x 18.5 cm
  • Dimensions (w x d x h) 29.5 x 35 x 46.5 cm
  • Capacity 18L
  • Weight 6 kg
  • Car Cigarette Plug Included
  • Electrical 100-240V, 50-60Hz, 60W


Incubator

Environmental chamber TH

Temperature and humidity test chamber is used to test material structure or composite, in the high temperature and ultralow temperature continuous environment. Suitable for electronic, LED lighting industry, auto parts, chemical industry, building materials, mobile computers, batteries, plastic, metal, rubber etc.material.

  • Power: 220-230 V, 50/60 Hz
  • Temperature range: room temperature -70 to 150 °C
  • Humidity range: 10% to 95 %
WEW-0080L-TH1 WEW-1000L-TH1
Volume (L) 80 1000
Inner size (WxDxH mm) 400x400x500 1000x1000x1000
Outer size (WxDxH mm) 600x1060x1410 1180x1610x1890


Incubator

Temperature test chamber GDW

The inner bladder of the chamber is made of SUS304 stainless steel plate while the outer bladder is made of A3 steel plate sprayed with plastic. A large observation window is set on the chamber door. A test hole with 25mm, or 50mm or 100mm diameter is set on the left of the chamber body. A fixable PU moving wheel is adopted on the bottom of the test chamber.

The PID temperature controller has a touch screen control panel.

The cooler adopts original French Tecumseh fully closed compressor. The cooling system adopts single or dual low temperature loop system design.

  • Fluctuation/Eveness:+/-0.5 °C / +/-2 °C
  • Temperature range: -20 to 150 °C (model A), -40 to 150 °C (model B), -60 to 150 °C (model C), -70 to 150 °C (model D)
  • Temperature rise speed: 1 to 3 °C/min
  • Temperature fall speed: 0.7 to 1 °C/min
GDW225 GDW225 GDW500 GDW800
Inner size (WxDxH mm) 450x450x500 500x600x750 800x700x900 800x1000x1000
Outer size (WxDxH mm) 1050x970x1760 1050x1020x2000 1320x1320x2170 1470x1520x2310
Power (W) 4500 5500 8000 9000


Thermostatically controlled CO2/O2 incubators

  • PID Controller
  • Graphic display round corner design for contamination prevention and easy cleanup
  • Alarms
WS40CA WS40COA WS180CA WS180COA
Ext. dimensions (mm) 440x448x570 427x452x570 653x639x965 653x639x965
Int. dimensions (mm) 338x334x358 338x334x358 540x500x680 540x500x680
Volume 40 L 40 L 180 L 180 L
Temperature range ambiente + 5 to 50 °C ambiente + 5 to 50 °C ambiente + 5 to 50 °C ambiente + 5 to 50 °C
Temperature accuracy 0.1 °C at 25 °C 0.1 °C at 25 °C 0.1 °C at 25 °C 0.1 °C at 25 °C
CO2 range 0-20 % 0-20 % 0-20 % 0-20 %
CO2 accuracy 0.1 % at 5 % 0.1 % at 5 % 0.1 % at 5 % 0.1 % at 5 %
O2 range - 0.2-100 % 0.2-100 %
O2 accuracy - 0.1 % at 5 % 0.1 % at 5 %


Diurnal Plant Chamber

Diurnal Plant Chamber LI15-2

MRC Diurnal growth chambers are designed for studies requiring day and nighttime simulation. This unit features dual-program selector dials, which allows control of two temperature conditions and an ON/OFF illumination cycle relative to the program selected. Each system operates independently allowing for simulation of a diurnal cycle, such as an eight hour day cycle of 30°C with light followed by a sixteen hour night cycle of 18°C without light. Forced air circulation ensures the most reproducible test conditions. The chamber air is gently and continuously circulated at a rate that ensures temperature uniformity of all test samples. The unit is equipped with a hermetically-sealed compressor and an independent over temp. In addition, a one amp interior outlet allows use of shakers, stirrers, roller bottles or other apparatus. This chamber is ideal for plant growth studies.

  • Exterior Dimensions (wxdxh): 87.7 x 87.7 x 196.9 cm
  • Chamber Dimensions (wxdxh): 68.5 x 58.4 x 143.5 cm
  • Temperature Range: 0°C to 45°C at 20°C ambiant
  • Temperature Uniformity: ± 0.5°C at 20°C
  • Incubator Chamber Capacity: 444 L
  • Power: 220V
  • Number of Shelves 4 included


Cabinet

Spark-free cabinets

Laboratory cabinets with a spark-free* interior (*spark-free interiors reduce risk of internal explosion)

The German BGR 120 guideline for laboratories stipulates that interior spaces must be explosion-protected where hazardous, explosive atmospheres can develop (for example, due to the presence of flammable liquids).

The Lovibond® CFC-free refrigerators in the EX range meet the requirements of this guideline and are fully equipped for daily laboratory use.

The carcass consists of a sturdy sheet steel housing with impact-proof and jolt-resistant powder coating.

The robust interior is made of high-strength white plastic material (PS).

The door is lockable and supplied with a righthand hinge as standard (but can easily be converted to a left-hand hinge). A tight door seal is ensured by an all-round magnetic gasket.

The temperature in the refrigerator can be continuously adjusted over the range +2°C to +10°C; a room thermostat ensures constant control.

ET 718/EX, type 180: 230 V / 50 Hz, Power consumption 120 Watt, Consumption 0,9 (kWh/24h) temperature regulation: infinitely variable 2 - 10 °C, Lockable door, changeable door stop, 4 storage levels (3 height-adjustable grid-type shelves), Internal dimensions: 700 H x 515 L x 433 W mm, Net capacity: approx. 150 l, External dimensions: 885 H x 602 W x 600 D mm, Weight: approx. 37.0 kg

ET 726/EX, type 260: 230 V / 50 Hz, Power consumption 140 Watt, Consumption 1,0 (kWh/24h) temperature regulation: infinitely variable 2 - 10 °C, Lockable door, changeable door stop, 5 storage levels (4 height-adjustable grid-type shelves), Internal dimensions: 1045 H x 515 L x 415 W mm, Net capacity: approx. 210 l, External dimensions: 1215 H x 602 L x 600 W mm, Weight: approx. 46.5 kg

ET 736/EX, type 360: 230 V / 50 Hz, Power consumption 150 Watt, Consumption 1,1 (kWh/24h) temperature regulation: infinitely variable 2 - 10 °C, Lockable door, changeable door stop, 6 storage levels (5 height-adjustable grid-type shelves), Internal dimensions: 1450 H x 515 L x 415 W mm, Net capacity: approx. 295 l, External dimensions: 1589 H x 602 L x 600 W mm, Weight: approx. 62.0 kg

ET 750/EX, type 500: 230 V / 50 Hz, Power consumption 150 Watt, Consumption 1,1 (kWh/24h) temperature regulation: infinitely variable 2 - 10 °C, Lockable door, changeable door stop, 6 storage levels (5 height-adjustable grid-type shelves), Internal dimensions: 1300 H x 652 L x 515 W mm, Net capacity: approx. 425 l, External dimensions: 1515 H x 755 L x 715 W mm, Weight: approx. 77.0 kg


Incubator

UV weather resistance test chamber UVP

This series is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources.

The inner bladder of the chamber is made of imported hig class stainless steel plate while the outer bladder is made of A3 steel plate sprayed with plastic. The heating mode adopts inner bladder trough type heating with its rapid temperature rise and even temperature.

The radiometer probe is fixed so as to avoid the frequent installation and disassembly. The radiation quantity adopts the special UV irradiatometer with high precision display and measurement. The radiation intensity is not more than 50W/m2. The illumination and condensation can be controlled independently or alternatingly and circularly.

  • Workroom Dimensions (cm) 45x117x50
  • Exterior Dimensions (cm) 58x128x135
  • Power 4.0 KW
  • Temperature Range RT+10°C to 70°C
  • Humidity Range >95 %
  • Lamp Spacing 35mm
  • Distance between Sample and Lamp 50mm
  • Quantity of Samples Supported 150mm (L) × 75mm (W), about 40 pcs
  • UV Wavelength: 290nm to 400nm UV-A, UV-B, UV-C (Subject to the specifications in order)
  • Lamp Power: 40W
