Hanging and crane balances

hanging scale

KERN HDB, hanging scale

  • Ideal for rapid control in goods-in and goods-out
  • Hook (stainless steel), can be hinged
  • Ready for use: Batteries included, 2×1.5 V AAA, operating time up to 180 h, AUTO-OFF function to preserve the batteries
  • 2 AA batteries, (1.5 V) are included
  • auto-off function after 5 min without a change of load to preserve the batteries
  • operating time: about 180 h
Model readout range
g kg
HDB 5K5N 5 5
HDB 10K10N 10 10


KERN CH, hanging scale

  • one 9 V battery included
  • auto-off function after 5 min without a change of load to preserve the batteries
Model readout range
g kg
CH 15K20 20 15
CH 50K50 50 50
CH 50K100 100 50

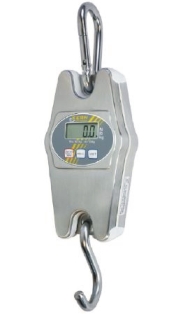

KERN HCB, hanging scale

  • deal for rapid control in goods-in and goods-out
  • Essential too in the private sector to determine the weight of fish, game, fruits, bicycle parts, suitcases etc.
  • Hold function: For easy reading of the weighing result, the display can be "frozen" in different ways. Either automatically when the weighing value remains unchanged or manually by pressing the Hold key
  • Peak load display (peak hold), measuring frequency 5 Hz
  • HCB with [Max] ≥ 0,5 t: Reinforced version for heavy loads. Snap link and Hook not included
Model readout range
g kg
HCB 20K10 10 20
HCB 50K20 20 50
HCB 50K100 100 50
HCB 99K50 50 99
HCB 100K200 200 100
HCB 200K100 100 200
HCB 200K500 500 200
HCB 0.5T-3 1000 500
HCB 1T-3 2000 1000


KERN HCN, hanging scale

  • Multi data hold function:
  • When the weighing value remains unchanged...
    • the weight display is automatically "frozen" for 5 sec
    • the weight display is automatically "frozen" until any key is pressed
  • By pressing the Hold key...
    • the weight display can be "frozen" for 5 sec
    • the weight display can be "frozen" until any key is pressed
  • Peak load display (peak hold), measuring frequency 5 Hz
  • Housing stainless steel, IP65 protection
  • Second display on the rear of the balance
Model readout range
g kg
HCN 50K100IP 100 50
HCN 100K200IP 200 100
HCN 200K500IP 500 200


Kranwaage

KERN HFB, hanging scale

  • Professional solution up to 600 kg with rear-facing second display
  • High mobility: thanks to battery operation, compact construction and low weight, it is suitable for use in several locations (production, warehouse, dispatch department etc.)
  • Second display on the rear of the balance
  • Hook with safety catch, revolving
  • Shackle and hook connection made of nickel-plated stainless steel
  • Rechargeable battery pack internal, standard, operating time approx. 40 h, charging time approx. 14 h with mains adapter, charge indicator visual using LED
  • Hold function: When the weighing value remains unchanged the weight indicated on the display is automatically "frozen" until the HOLD key is pressed
  • Tare: Resets the display to "0" when there is a load on the scale. Now removed or added loads are directly displayed
  • Radio remote control standard. Range up to 20 m. All functions can be selected (excl. ON/OFF). W×D×H 48x10x95 mm. Batteries included (2 x 1,5 V AAA)
Model readout range
g kg
HFB 150K50 50 150
HFB 300K100 100 300
HFB 600K200 200 600

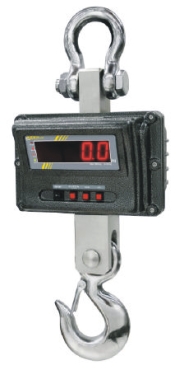

KERN HFM, hanging scale

  • Industrial crane scale up to 10 t
  • Professional device for robust applications in production, quality control, logistics etc. Because of its stable construction and robust design, it is ideal for continuous use in industrial applications
  • High mobility: thanks to battery operation, compact construction and low weight, it is suitable for use in several locations (production, warehouse, dispatch department etc.)
  • Hook with safety catch, revolving
  • Rechargeable battery pack internal, standard, operating time approx. 50 h, charging time approx. 14 h with mains adapter, charge indicator visual using LED
  • Adaptation to unstable environmental conditions by changing the readout
  • Hold function: When the weighing value remains unchanged the weight indicated on the display is automatically "frozen" until the HOLD key is pressed
  • Tare: Resets the display to "0" when there is a load on the scale. Now removed or added loads are directly displayed
  • Radio remote control standard. Range approx. 20 m. All functions can be selected (excl. ON/OFF). W×D×H 48x10x95 mm. Batteries included, 2 x 1,5 V AAA
Model readout range
g kg
HFM 1T0.1 100 1000
HFM 3T0.5 500 3000
HFM 5T0.5 500 5000
HFM 10T1 1000 10000

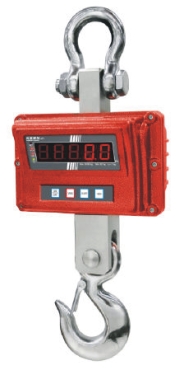

KERN HFO, hanging scale

  • Industrial crane scale up to 10 t – now also with EC type approval [M]
  • Professional device for robust applications in production, quality control, logistics etc.
  • Because of its stable construction and robust design, it is ideal for continuous use in industrial environment
  • High mobility: thanks to battery operation, compact construction and low weight, it is suitable for use in several locations (production, warehouse, dispatch department etc.)
  • Adaptation to unstable environmental conditions by changing the readability
  • High resolution readout: Read-out [d] for 5 sec increased by one decimal place at the touch of a key, only for models with EC type approval
  • Hold function: When the weighing value remains unchanged the weight indicated on the display is automatically "frozen" until the HOLD key is pressed
  • Tare: Resets the display to "0" when there is a load on the scale. Now removed or added loads are directly displayed
  • Hook with safety catch, revolving
Model readout range
g kg
HFO 1.5T0.5M 500 1500
HFO 3T1M 1000 3000
HFO 6T2M 2000 6000

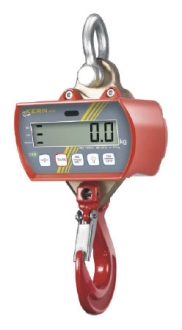

KERN HTS, hanging scale

  • Robust industrial crane scale up to 10 t, with EC type approval [M]
  • Professional device for robust applications in production, quality control, logistics etc.
  • Because of its stable construction and robust design, it is ideal for continuous use in industrial environment
  • High mobility: thanks to battery operation, compact construction and low weight, it is suitable for use in several locations (production, warehouse, dispatch department etc.)
  • Range of tare: 100 % of [Max]
  • LED display with Gross/Tare/Net
  • charge status indication visualised through LED
  • Standby function: display automatically switched off after 5 min without a change of load. Automatic activation with the touch of a key
  • Tare: Resets the display to "0" when there is a load on the scale. Now removed or added loads are directly displayed
  • Hook with safety catch, non-revolving
  • Infrared remote control standard. Range up to 8 m. All functions can be selected. W×D×H 65×24×100 mm. Batteries included, 9 V
Model readout range
g kg
HTS 1T-4AM 500 1500
HTS 3T-3AM 1000 3000
HTS 6T-3AM 2000 6000
HTS 10T-3AM 5000 10000

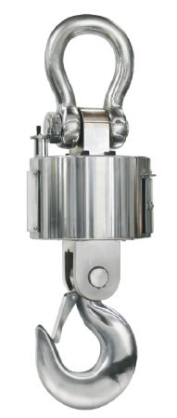

KERN HFT, hanging scale

  • Robust industrial crane scale up to 15 t with radio display and RS-232 data interface for transferring weighing results
  • Professional device for robust applications in production, quality control, logistics etc. Because of its stable steel construction and robust design, it is ideal for continuous use in industrial applications
  • Weighing unit without display, therefore very robust
  • Hold function: When the weighing value remains unchanged the weight indicated on the display is automatically "frozen" until the HOLD key is pressed
  • Hook with safety catch, revolving
  • Display with integrated radio module, in this way the weighing data can easily be read off the display by the user, even if the user might find himself in a remote distance from the crane scale. Range up to 100 m. The integrated RS-232 data interface allows from connection to a printer, PC or network
Model readout range
g kg
HFT 3T0.5 500 3000
HFT 5T01 1000 5000
HFT 10T2 2000 10000
HFT 15T5 5000 15000


KERN HFA, hanging scale

  • Compact crane scale with integrated display can also be used for tensile force measurement
  • With its high-quality finish, low weight and compact dimensions, this crane scale (tensile force gauge) is an essential device for industrial use, on building sites, in freight centres, ports etc.
  • Because of its compact design it is also ideally suited for installation in systems where space is limited, etc.
  • Ideally suited for determining weight quickly while loading and unloading
  • Peak load display (peak hold)
  • Hold function: When the weighing value remains unchanged the weight indicated on the display is automatically "frozen" until the HOLD key is pressed
  • Tare: Resets the display to "0" when there is a load on the scale. Now removed or added loads are directly displayed
  • Material and design of housing/load support, models with
  • [Max] <= 3 t: aluminium/stainless steel bearing
  • [Max] > 3 t: steel
Model readout range
g kg
HFA 600K-1 200 600
HFA 1T-4 1000 1000
HFA 3T-3 3000 3000
HFA 5T-3 5000 5000
HFA 10T-3 10000 10000


KERN HFC, hanging scale

  • Compact crane scale for use in harsh environmental conditions or where space is limited, with convenient hand-held terminal
  • With its high-quality finish, low weight and compact dimensions, this crane scale (tensile force gauge) is an essential device for industrial use, on building sites, in freight centres, ports etc.
  • Because of its compact design it is also ideally suited for installation in systems where space is limited, etc.
  • Peak load display (peak hold)
  • Hold function: When the weighing value remains unchanged the weight indicated on the display is automatically "frozen" until the HOLD key is pressed
  • Tare: Resets the display to "0" when there is a load on the scale. Now removed or added loads are directly displayed
  • Display device with integrated radio module, which the user can carry around with him, thanks to the convenient hand strap[/]. In this way the weighing data can always be read off the display device by the user, even when the user is a long way from the load receptor (force gauge) or under poor lighting conditions. Standard. Range up to 100 m. All functions can be selected. LCD display, digit height 23 mm, Rechargeable battery pack internal, standard. operating time up to 30 h without backlight, charging time approx. 12 h. Can be re-orderedDimensions Housing (display device) W×D×H 88×64×256 mm
  • Material and design of housing/load support, models with
  • [Max] <=3 t: aluminium/stainless steel bearing
  • [Max] > 3 t: steel/steel
Model readout range
g kg
HFC 600K-1 200 600
HFC 1T-4 1000 1000
HFC 3T-3 3000 3000
HFC 5T-3 5000 5000
HFC 10T-3 10000 10000


Waterproof Crane scale OCS-SL HZGH

Capacity: 1 T to 20T

Battery: 6V/7Ah,

Adaptor: 9V/1000 mA
