Micro solenoid valve - pinch mechanism 284 Serie
- A single component in contact with the fluid, i.e. the tube
- Fluid types: water, air , inert gases, oil, liquid fluids
- Ideal for hihg purity fluids, no contamination possible
- For sterile, aseptic, physiological and food applications
- Differential pressure: 0 à 0,8 bar
- No dead volume
- No heating of the fluid through the solenoid
- Small, silent operation
- Low consumption
- Robust, life: about 10 million de cycles (without tube)
- Recommended tube: VMQ (silicone, hardness 50 shore A maxi.)
- Voltage: 12 V or 24 V
Specifications, normaly closed valve
int. tube diam. (mm) |
ext. tube diam (mm) |
pinch force (daN) |
min. differential pressure (bar) |
max. differential pressure (bar) |
power (W) |
code |
0.76 |
1.65 |
0.18 |
0 |
0.8 |
4 |
SCH284A001 |
1.02 |
2.16 |
0.22 |
0 |
0.8 |
4 |
SCH284A002 |
1.57 |
3.18 |
0.28 |
0 |
0.8 |
4 |
SCH284A003 |
1.98 |
3.18 |
0.25 |
0 |
0.8 |
4 |
SCH284A004 |
2.7 |
4.9 |
0.65 |
0 |
0.8 |
9 |
SCH284A005 |
4.8 |
7.9 |
1.1 |
0 |
0.8 |
13 |
SCH284A006 |
6.4 |
9.5 |
1.4 |
0 |
0.8 |
13 |
SCH284A007 |
Specifications, normaly opened valve
int. tube diam. (mm) |
ext. tube diam (mm) |
pinch force (daN) |
min. differential pressure (bar) |
max. differential pressure (bar) |
power (W) |
code |
0.76 |
1.65 |
1.2 |
0 |
0.8 |
4 |
SCH284A009 |
1.02 |
2.16 |
1.3 |
0 |
0.8 |
4 |
SCH284A010 |
1.57 |
3.18 |
0.6 |
0 |
0.8 |
4 |
SCH284A011 |
1.98 |
3.18 |
0.9 |
0 |
0.8 |
4 |
SCH284A012 |
2.7 |
4.9 |
0.5 |
0 |
0.8 |
9 |
SCH284A013 |
4.8 |
7.9 |
2.3 |
0 |
0.8 |
13 |
SCH284A014 |
6.4 |
9.5 |
2.4 |
0 |
0.8 |
13 |
SCH284A015 |
|
|
Mini solenoid valve rocker mechanism 110 Serie
- Fluid isolation, hermetic separation of control mechanism and fluid
- Can be used to control acids and bases, as well as analytical reagents
- Differential pressure -0.7 to +2 bar (usable in 0.3 bar abs. vacuum)
- Very low dead volume (less as 70 ul)
- Reduced heat exchange between coil and fluid
- Cover: PA12 transparent, enabling flow of fluid to be seen
- Diaphragm poppet: EPDM
- Low consumption
- Voltage: 12 V or 24 V to specify
- Industrial or laboratory connection for the fluid
Specifications, normaly closed valve
pipe |
flow coefficient Kv (l(mn) |
min. differential pressure (bar) |
max. differential pressure (bar) |
power (W) |
code |
2/2 |
0.75 |
-0.7 |
2 |
4/5 |
11000006 |
Specifications, normaly opened valve
pipe |
flow coefficient Kv (l(mn) |
max. differential pressure (bar) |
max. differential pressure (bar) |
power (W) |
code |
2/2 |
0.75 |
-0.7 |
2 |
4/5 |
11000005 |
|
|
Mini solenoid valve lever mechanism 283 Serie
- lever mechanism isolated from fluid
- Can be used to control acids and bases
- Low consumption
- Cover: Polyetherimide
- poppet seals: silicone, fluoroelastomer ou styrolbutadiene
- Voltage: 12 V or 24 V to specify
Specifications, normaly closed valve
int. tube diam. (mm) |
ext. tube diam (mm) |
flow coefficient Kv (l(mn) |
min. differential pressure (bar) |
max. differential pressure (bar) |
power (W) |
code |
2.7 |
8 |
3.83 |
0 |
5 |
6 |
SCH283A003 |
3.4 |
8 |
5 |
0 |
3 |
6 |
SCH283A004 |
3.2 |
11 |
5.33 |
0 |
1.5 |
8 |
SCH283A009 |
5.5 |
11 |
9.16 |
0 |
1 |
8 |
SCH283A010 |
Specifications, normaly opened valve
int. tube diam. (mm) |
ext. tube diam (mm) |
flow coefficient Kv (l(mn) |
min. differential pressure (bar) |
max. differential pressure (bar) |
power (W) |
code |
3.4 |
8 |
3.83 |
0 |
3 |
6 |
SCH283A003 |
|
|
Mini solenoid valve belows seal mechanism 296 Serie
Valve for the control of agressive liquids and gases in the pharmaceutical, biochemical, photographic and analytical industries, in chip and wafer production, environmental technology as well as colour chemistry
The valve is suited for all applications in which the fluids must not come into contact with the metal parts (electromagnetic control of the solenoid valve)
Bellows system made of PTFE and FFPM seals with high functional reliability.
Specifications with stainless steel body
int. tube diam. (mm) |
flow coefficient Kv (l(mn) |
min. differential pressure (bar) |
max. differential pressure (bar) |
power (W) |
code |
2 |
1.8 |
0 |
1 |
5 |
SCG296A001 |
2 |
1.8 |
0 |
5 |
9 |
SCG296A002 |
4 |
5.3 |
0 |
4 |
9 |
SCG296A003 |
Specifications with peek body
int. tube diam. (mm) |
flow coefficient Kv (l(mn) |
min. differential pressure (bar) |
max. differential pressure (bar) |
power (W) |
code |
2 |
1.8 |
0 |
1 |
5 |
SCG296A004 |
2 |
1.8 |
0 |
5 |
9 |
SCG296A005 |
4 |
5.3 |
0 |
4 |
9 |
SCG296A006 |
|
|

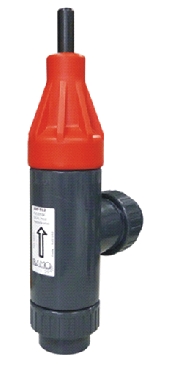

Pressure relief valve SDD912
Pressure relief valves SDD 912 limits the static pressure to a constant and maximal settled value by opening the outlet (to the discharge line) when the pressure is overriding. The SDD 912 valves may be used as pressure relief valves on volumetric pumping system. The right angle concept allows smallest dimensions with a reduced weight for easiest fitting on line than any conventional in-line straight pressure relief valve.
All wetted parts are in plastics; without any metallic parts exposed to the atmosphere it allows a location in corroding vapours.
These equipment protection devices may be fitted in any position, in line, or on by-pass according to the application.
- Body: PVC
- Seat seal and O-rings: EPDM (ND 32 to 80) or FPM (ND 32 to 50)
- Relief pressure: Adjustable 1 to 10 bar
- Pressure class: PN 10 (at 20°C) ; [ bar ]
- Temperature limits: +10 to +50°C
- Inlet / outlet size: ND 32 to ND 80
- Hysteresis: Approximately 0.5 bar
- Connections ND 32 to ND 50: PVC unions or PVC spigot ends
- Connections ND 65 & ND 80 Inlet: PVC flange; Outlet: PVC spigot end
- Flow rate limit: 3 m/s as a maximum
|
|

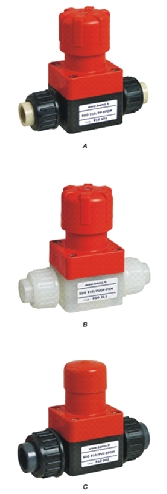

Pressure relief valve SDD910
The pressure relief valves SDD910 can protect a pipe network in case of overpressure. They also help maintain a constant limited pressure in the case of a pressure drop in the tube. All parts in contact with the fluid are made of plastic. Membranes and seals are available in EPDM or FPM depending on the application.
The SDD 910 will be used as relief valves on pumps. These equipment protection devices may be fitted in any position, in line, or on by-pass according to the application.
They are also used as injection pipes on metering pumps, avoiding the risk of creating a slurping against adjustable and constant pressure.
- Body: PPH reinforced with fiberglass or PVDF
- Diaphragm: EPDM or FPM
- Seals: EPDM or FPM
- Hat: PPH glass fiber reinforced
- Screws and Spring: Stainless Steel
- Insert: Brass
- Dimensions: DN 10 and DN 15
- Setting range: 0.5 to 6 bar
- Hysteresis: Approx. 0.3 bar
- Pressure class: PN 10 (at 20 ° C)
- Temperature: +10 to + 50 ° C
- Hysteresis: Approx. 0.5 bar
- Connection: Bolting glue (PVC), to polyfuser (PPH or PVDF)
|
|
Whisper Valve with media separation type 6712 2/2 way
- Highest chemical resistance with minimal internal volume
- Compact design with 7 mm width
- Orifice size 0.8 mm (3 bar) and 0.4 mm (5 bar)
- Switching noise < 36 dB
- For dosing applications with excellent flush ability
- Pressure output (Back pressure):DN 0.8 mm: max. 1.2 bar, DN 0.4 mm: max. 1.8 bar
- Body material PEEK, PPS Seal material FFKM, FKM and EPDM Medium Resistant to neutral and aggressive gases and liquids
- Medium temperature: EPDM: 0 to +55 ºC FFKM: +10 to +55 °C FKM: +15 to +55 °C
- Ambient temperature, EPDM: 0 to +55 ºC FFKM: +10 to +55 °C FKM: +15 to +55 °C
- Typical service life 30.000.000 (acc. to laboratory duration tests
- Internal volume Fluid chamber: 2 ul Total (incl. connections): 5 ul
- Viscosity Max. 21 mm2/s
- Power supply 12 V DC, 24 V DC Voltage tolerance ±10 %
- Power consumption 0.9 W
- IP40
- Approvals and compliance on request
- Suitability for drinking water: KTW (W270)
- Suitability for foodstuffs: FDA
|
|

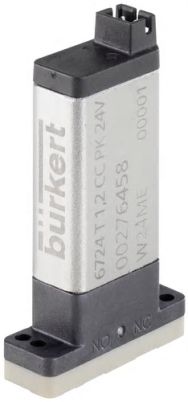

Whisper Valve with media separation type 6724 2/2 or 3/2 way
- Highest chemical resistance
- Compact design with 8.9 mm width
- Orifice size 0.8 mm (vacuum up to 5 bar [72.52psi]) and 1.2 mm (vacuum up to 3 bar [43.51psi])
- Very fast, almost silent switching with < 20 dB (A) and < 1 W power consumption
- High back pressure tightness, excellent cleanability
- Body material PEEK, PPS Seal material FFKM, EPDM and FKM Medium Resistant to neutral and aggressive gases and liquids
- Media temperature FFKM: +15 to +50°C, FKM: 0 to +50°C, EPDM: 0 to +50°C
- Ambient temperature FFKM: +15 to +50°C, FKM: 0 to +50°C, EPDM: 0°C to +50°C
- Typical service life 10.000.000
- Internal volume Fluid chamber 28 ul / Total (incl. connection) 38 ul
- Viscosity max. 21 mm2/s
- Electrical connection Plug Raster 2 mm
- Power supply 12V DC; 24V DC (other voltages on request)
- Voltage tolerance ±10% (incl. Residual rippler
- Power consumption 1 W
- IP40
- Switching noise 30 dB (A) / <20 dB (A) on request
- types: 2/2 way valve direct-acting normally closed, 2/2 way valve direct-acting normally open, 3/2 way valve direct-acting Universal function
|
|
|
