Description

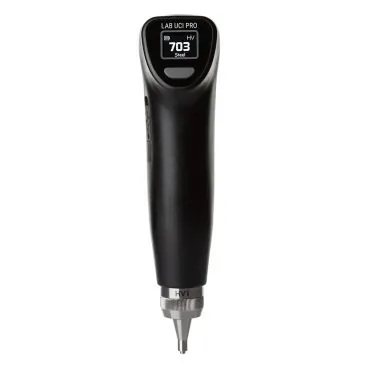

The Lab UCI Pro is a next-generation portable hardness tester built on an advanced Ultrasonic Contact Impedance (UCI) technology. The device delivers a new level of measurement accuracy, stability, and usability, setting a higher standard for UCI hardness testing in both laboratory and field applications.
The new technology and probe design significantly minimize operator influence and ensure highly repeatable results, even when testing complex-shaped components, thin parts, and surface-hardened layers.

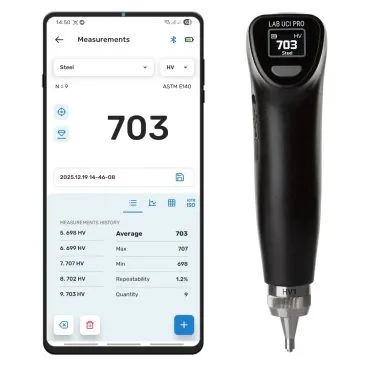

This Hardness Tester is a fully standalone hardness tester with a built-in high-contrast display and intuitive controls. All essential measurement functions — including hardness scales and material selection — are available directly on the instrument, while connection to a smartphone enables advanced features such as calibration, extended settings, data analysis, reporting, and storage.

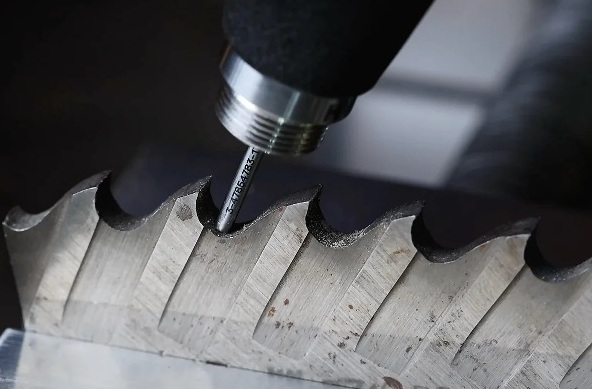

It allows hardness testing on almost any objects — from large components to very small parts weighing just a few grams, and thin plates about 1 mm thick. It can also measure coatings and surface-hardened layers where traditional methods cannot be applied. The indenter penetration depth is only a few microns, so the surface is almost not damaged.
Specifications
- Scales: HV, HB, HRC, HRB, HRA, HK, MPa
- Materials: Steel, Alloy steel, Stainless steel, Cast iron, Nickel, Aluminum, Brass, Copper
- Measurement uncertainty: 4 %
- Measurement range: 0 to 2000 HV
- Test load: HV1 (9.8 N) or HV5 (49 N), depending on the device type
- Display: 0.66″ (64×48)
- Interfaces: USB-C (charging and PC connection), Bluetooth BLE (for NOVOTEST Lab app)
- Battery: Built-in lithium-ion battery, 3.7V 750mAh, up to 24 hours of operation
- Dimensions: 153×40 mm
- Weight: 160 g
- Compliance standards: ASTM A1038, DIN 50159, ASTM E140, ISO18265
- Operating temperature range: from -20°C to +50°C
Advantages
- New UCI technology — high stability and repeatability
- Operation without a smartphone — built-in display and controls
- Ergonomic, lightweight, and compact body
- Wide set of scales and materials by default
- Ability to operate without a protective cap for complex areas
- Minimal surface impact — indentation depth only a few microns
- Measurement of thin and small-sized parts
- NOVOTEST Lab app support with extended functionality
- Up to 24 hours of autonomous operation
- Compliance with international standards
Delivering
- NOVOTEST Lab UCI Pro hardness tester
- USB Type-C cable
- Charger
- Protective carrying case
- User manual
- NOVOTEST Lab quick guide
Available options
- Sets of hardness reference blocks of various nominal values
- Special fixtures and stands for sample positioning
- Grinding tools (surface preparation)
- Additional protective caps
- Extended calibrations for non-standard materials
