Description

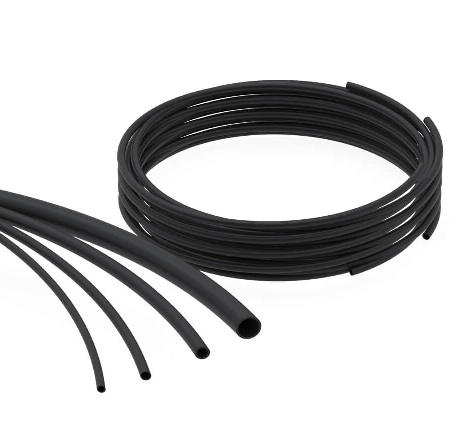

This PTFE (Polytetrafluoroethylene) tubing has very good electrical conductivity thanks to a special “antistatic compound” made up of pure PTFE and very fine, very pure carbon dust (less than 2.5%).
Features
- Color: Black
- High chemical resistance thanks to PTFE
- Electrical resistance less than 1000 kΩ according to DIN EN 12115
- Ideal for light-sensitive substances
- Antistatic applications in explosive environments (explosion protection) for transporting solvents or alcohols, for example
- Temperature resistance: -200°C to +250°C
- Chemical resistance: Excellent
- Conductivity: 1000 kΩ
| Ref nr | internal diameter (mm) | external diameter (mm) | wall thickness (mm) | radius of curvature mm (at 23 °C) | burst pressure bar (at 23 °C) |
| S1827-10 | (1/32″) – 0,8 | (1/16″) – 1,6 | 0,4 | 7 | 140 |
| S1827-26 | (1/16″) – 1,6 | (1/8″) – 3,2 | 0,8 | 13 | 140 |
| S1827-30 | 2,0 | 3,0 | 0,5 | 18 | 70 |
| S1827-32 | 2,0 | 4,0 | 1,0 | 16 | 140 |
| S1827-34 | 3,0 | 4,0 | 0,5 | 32 | 46 |
| S1827-40 | 4,0 | 6,0 | 1,0 | 36 | 70 |
| S1827-42 | (11/64″) – 4,35 | (1/4″) – 6,35 | 1,0 | 40 | 64 |
| S1827-50 | 6,0 | 8,0 | 1,0 | 64 | 46 |
| S1827-60 | 8,0 | 10,0 | 1,0 | 100 | 35 |
| S1827-64 | 10,0 | 12,0 | 1,0 | 144 | 28 |
| S1827-68 | 12,0 | 14,0 | 1,0 | 196 | 23 |
| S1827-74 | 14,0 | 16,0 | 1,0 | 256 | 20 |
