Description

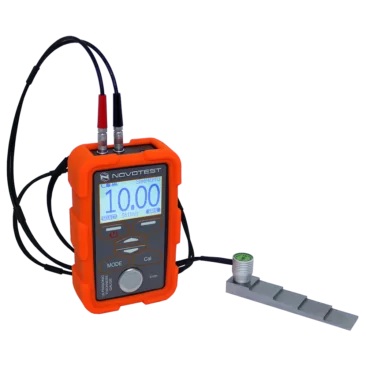

The method of the ultrasonic thickness gauge is based on the property of materials to conduct ultrasound, ultrasonic wawes are excited with the piezoceramic plate in the transducer and penetrates into the material through the couplant, then reflected from the bottom surface of the tested sample, and returns to the transducer. Based on the obtained sound transit time in the material, the device calculates the thickness in accordance with the velocity of propagation of ultrasonic waves in the test sample. The thickness value is displayed on the device’s display, the measurement process takes about 1 second.
The thikcness gauge can be used on pulse-echo mode (direct measurement wihtout coating) or in echo-echo mode (though a coating) depending on the sensor (see table down)

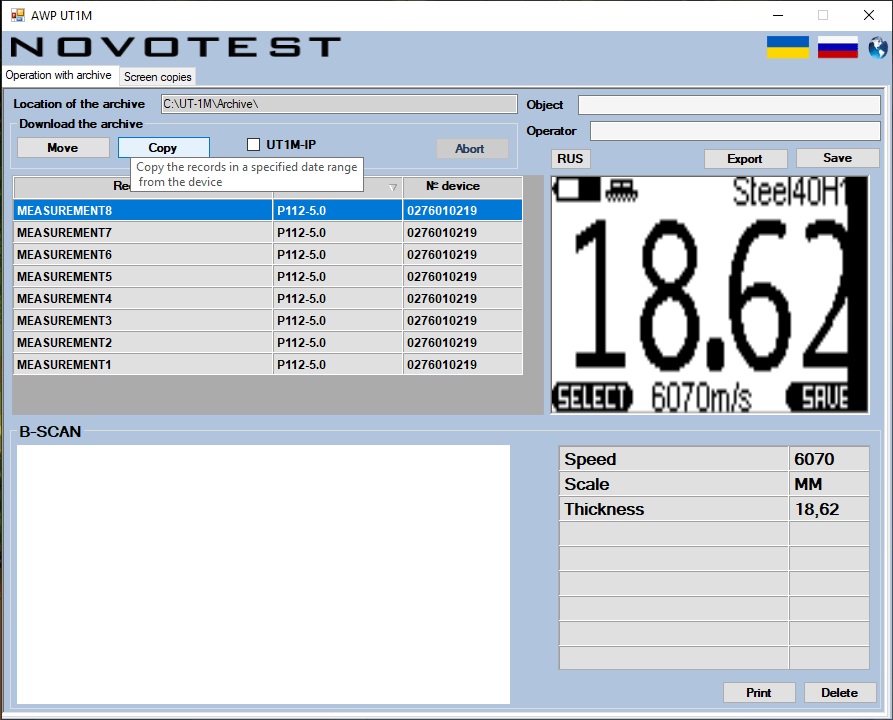

The device allows user to record the measurement results in the archive of the device, and subsequently transfer them to a PC using special software.
To visualize the product profile, if necessary not only point measurement, but also scanning, a B-scan is implemented in the device, which allows the user to visually see thinning and thickening of the wall of the testing object. Also, for ease of use, the device has an automatic defect alarm function, its meaning is that the operator can select boundary thickness values (minimum and maximum) when crossing the values of which the device will signal through the speaker, and also give a visual signal.
The version UT-1M has a wireless communication with Android smartphones and tablets.
Description
| Compatible probe types | Ultrasonic, dual-element, longitudinal waves (including probes of other manufacturers) |
| Probe calibrations (V-path, TVG, etc.) | factory for NOVOTEST probes |
| users for probes of other manufacturers | |
| Probe cable connector type | 2 Lemo 00 |
| Probe cable length, m | 1,2 |
| Measurement scales | mm (m/s) |
| inch (inch/μs) | |
| Measurement resolution, mm/inch | 0.01/0.001 |
| (0.01/0.0001 by request) | |
| Basic measurement accuracy, mm | ± (0,01 T+0.05) |
| (*For range 0.8 – 300 mm) | |
| Gain range, dB | ± 20 |
| Response time, with no more than, s | 1 |
| Setting range of the ultrasonic velocity, m / s | 1000-17000 |
| Preset velocities for materials | Steel (8 different grades), Aluminum, Iron, Cast Iron, Zinc, Chromium, Copper, Brass, Bronze, Silver, Gold, Nickel, Tungsten, Tin, Lead, Molybdenum, Manganese, Magnesium, Rubber, Polystyrene, Plexiglas, Capron, Caprolon, ED-5, Ebonite, Porcelain, Teflon, Textolite, Silicate Glass, Acrylic glass, User |
| Device menu modes | Measurement |
| Calibration | |
| Archive | |
| Memory card | |
| Information | |
| Operating modes | Normal |
| B-scan | |
| Control mode | |
| Standards | ASTM E797 |
| EN 14127 | |
| EN15317 | |
| Body type / | Plastic, with shockproof silicone case |
| Dust and moisture protection level | Standard for shop and field operation, IP54 |
| Calibration thickness block on the body | 6 mm (Steel/~6080 m/s) |
| PC cable connection | Online – NOVOTEST.INFO/USB-connect |
| Wireless connection with Android gadgets via NOVOTEST Lab App | UT-1M – No |
| UT-1M (Lab) – Yes | |
| Storage capacity of measurement results | UT-1M – 128 |
| UT-1M (Lab) – 128 in the device + in NOVOTEST Lab App limited only by the memory of the Android gadgets | |
| Measurement archives | Device menu |
| Android smartphone/tablet | |
| Cloud storage/PC | |
| Excel (CSV) | |
| Menu languages | English, Spanish, Ukrainian, Russian (other languages optional) |
| Operating environment | Temperature:-20°C~40°C |
| Humidity: 30%~80%R.H. | |
| Power supply | DC 3V (2 pcs standard batteries AA) |
| Time of continuous work hours, not less, h | 25 |
| Charging | External charger for 2pcs AA batteries |
| Weight of electronic unit with batteries, no more, kg | 0.25 |
| Overall dimensions, mm | 120x60x25 |
| Package weight, kg | 1.5 |
| Package dimensions, cm | 33*27*10 |
| Garanty | – 12 months for electronic unit |
| – 6 months for probes |
Available probes
| Probe | Range |
| Probe 10MHz – P112-10-2×3 | range 0.4-15 mm |
| Probe 10MHz – P112-10-6 / 2 | range 0.45-300 mm |
| Probe 5MHz – P112-5-10 / 2 | range 0.8-500 mm |
| Probe 2,5MHz – P112-2,5-12 / 2 | range2.5-1000 mm |
| Probe 2MHz – P112-2-20 / 2 | range 3-1200 mm |
| Probe 1,25MHz – P112-1.25-20 / 2 | range4-1500 mm |
| 5MHz high-temperature probe (echo) 10/2 | range 0,8 – 300 mm, surface temperature up to 250 °С/482 °F |
| 2,5MHz probe (echo-echo) 12/2 for through coating | range 6 – 30 mm, coating thickness range – up to 1 mm |
| 5MHz probe (echo-echo) 10/2 for through coating | range 3,5 – 26 mm, coating thickness range – up to 1 mm |
| 10MHz probe (echo-echo) 6/2 for through coating | range 2 – 12 mm, coating thickness range – up to 0,6 mm |
| 5MHz probe (echo-echo) 10/2 for through coating, underwater, 10 m cable | range 3,5 – 26 mm, coating thickness range – up to 1 mm |
| 5MHz probe (echo-echo) 10/2 for through coating, underwater, 20 m cable | range 3,5 – 26 mm, coating thickness range – up to 1 mm |
| 5MHz probe (echo-echo) 10/2 for through coating, underwater, 30 m cable | range 3,5 – 26 mm, coating thickness range – up to 1 mm |

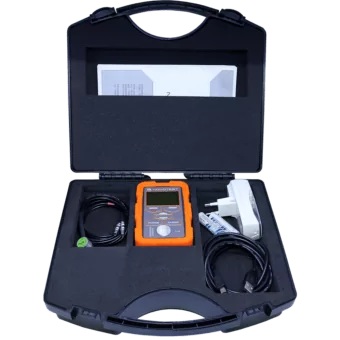

Standard delivery
- 1 x UT-1M
- 1 x Probe (puls-echo) – 1 pc (2.5MHz, 5MHz or 10MHz to choose)
- AA batteries – 2 pcs
- Charger
- USB cable for PC
- PC software (free to downlaod)
- Operating manual/Quick guide in english
- Transportation plastic case
