Description

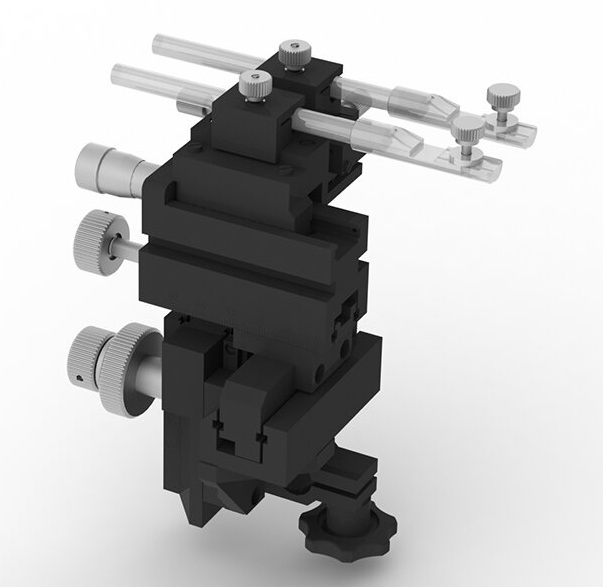

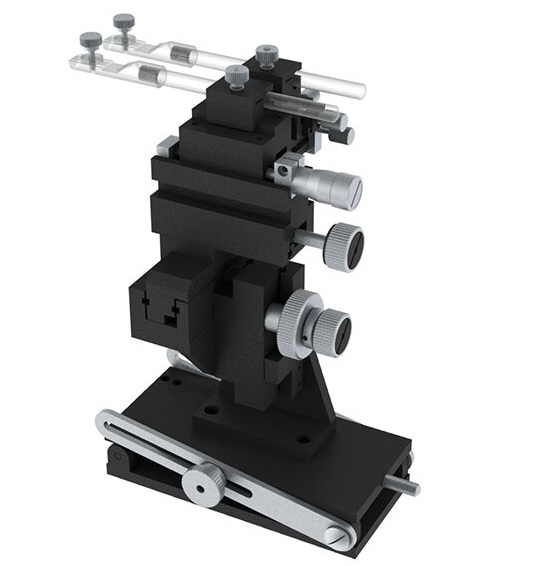

This micromanipulator allows for the attachment of 2 probes.
Features
- With 1/2″ probe attachment
- Manual movement on 3 axes (XYZ)
- X-axis adjustment range: 37 mm
- Y-axis adjustment range: 20 mm
- Z-axis adjustment range: 25 mm
- The second electrode holder can be rotated, tilted, and moved independently along the X, Y, and Z axes.
- Multiple micromanipulators can be installed side-by-side.
- Coarse adjustment with an accuracy of 0.1 mm.
- Fine adjustment with an accuracy of 0.01 mm (micrometer screw).
- Optional stop on the Z-axis to prevent micromanipulator drift when handling heavy loads.
- Ref. 00-42-105-0000 (for right-hand side, with 1/2″ clamp)
- Ref. 00-42-106-0000 (for left side, with 1/2″ clamp)
- Ref. 00-42-121-0000 (for right side, with tilting device)
- Ref. 00-42-122-0000 (for left side, with tilting device)
You can find the microprobes here: O2, CO2 measurement
and here: pH measuremenent
