Communication

8 x RS232

MOXA CP 168 U V2

  • 8 x RS232
  • Signals: Universal PCI compatible, with 3.3 and 5V PCI and PCI-X, TxD / RxD / RTS / CTS / DTR / DSR / DCD / GND
  • Speed: from 50 bps to 921.6 Kbps
  • For Linux 2.4, Linux 2.6, Win2000, Win95/98, WinME, WinNT, WinXP (drivers included)
  • Connector: 1 DB62 connector
  • Parity: None, Even, Odd, Space, Mark
  • Data Bits: 5, 6, 7, 8
  • Stop Bits: 1, 1.5, 2
  • IRQ and I/O Address: BIOS assigned
  • Flow Control: RTS/CTS, XON/XOFF
  • Options:
    • 8-port, male DB9, RS-232 Connection Box (ref Opt8-M9)
    • 8-port, 8-pin RJ45, RS-232 Connection Box (ref Opt8-RJ45)
    • 8-port, female DB25, RS-232 Connection Box (ref Opt8A)
    • 8-port, female DB25, RS-232 Connection Box with surge protection (ref Opt8S)
    • 8-port, male DB25, RS-232 Connection Box (ref Opt8B)
    • 8-port, male DB25, RS-232 Connection Cable (ref CBL-M62M25x8-100)
    • 8-port, male DB9, RS-232 Connection Cable (ref CBL-M62M9x8-100)


MOXA CP 104JU V2

  • 4 x RS232
  • Signals: Universal PCI compatible, with 3.3 and 5V PCI and PCI-X, TxD / RxD / RTS / CTS / DTR / DSR / DCD / GND
  • Speed: from 50 bps to 921.6 Kbps
  • For Linux 2.4, Linux 2.6, Win2000, Win95/98, WinME, WinNT, WinXP (drivers included)
  • Connectors: 4 x 8-pin RJ45
  • Parity: None, Even, Odd, Space, Mark
  • Data Bits: 5, 6, 7, 8
  • Stop Bits: 1, 1.5, 2
  • IRQ and I/O Address: BIOS assigned
  • Flow Control: RTS/CTS, XON/XOFF
  • Options:
    • 8-pin RJ45 to male DB9 cable, 150 cm (ref CBL-RJ45M9-150)
    • 8-pin RJ45 to female DB9 cable, 150 cm (ref CBL-RJ45F9-150)
    • 8-pin RJ45 to male DB25 cable, 150 cm (ref CBL-RJ45M25-150)
    • 8-pin RJ45 to female DB25 cable, 150 cm (ref CBL-RJ45F25-150)


MOXA CP 132 UL V2

  • 2 x RS422 or RS485
  • Signals:
    • Universal PCI compatible, with 3.3 and 5V
    • RS-422, TxD+(B), TxD-(A), RxD+(B), RxD-(A), RTS+(B),RTS-(A), CTS+(B), CTS-(A), GND
    • 4-wire RS-485, TxD+(B), TxD-(A), RxD+(B), RxD-(A),GND
    • 2-wire RS-485, Data+(B), Data-(A), GND
  • Speed: from 50 bps to 921.6 Kbps
  • For Linux 2.4, Linux 2.6, Win2000, Win95/98, WinME, WinNT, WinXP (drivers included)
  • Connector: DB25 female
  • Parity: None, Even, Odd, Space, Mark
  • Data Bits: 5, 6, 7, 8
  • Stop Bits: 1, 1.5, 2
  • IRQ and I/O Address: BIOS assigned
  • Flow Control: RTS/CTS, XON/XOFF
  • Options: CP-132UL-I V2 same board with 2 KV Isolation Protection
  • DB9 cable included


MOXA CP 134 U V2

  • First 2 ports configurable for either RS-232 or RS-422/485 + 2 other RS422 or RS485 ports
  • Signals:
    • Universal PCI compatible, with 3.3 and 5V
    • RS-232, TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
    • RS-422, TxD+(B), TxD-(A), RxD+(B), RxD-(A), RTS+(B),RTS-(A), CTS+(B), CTS-(A), GND
    • 4-wire RS-485, TxD+(B), TxD-(A), RxD+(B), RxD-(A),GND
    • 2-wire RS-485, Data+(B), Data-(A), GND
  • Speed: from 50 bps to 921.6 Kbps
  • For Linux 2.4, Linux 2.6, Win2000, Win95/98, WinME, WinNT, WinXP (drivers included)
  • Connector: DB44 female
  • Parity: None, Even, Odd, Space, Mark
  • Data Bits: 5, 6, 7, 8
  • Stop Bits: 1, 1.5, 2
  • IRQ and I/O Address: BIOS assigned
  • Flow Control: RTS/CTS, XON/XOFF
  • Options: CP-134U-I V2 same board with 2 KV Isolation Protection
  • DB9 cable included


MOXA CP 118 U

  • 8-port RS-232/422/485 Universal PCI Serial Board
  • Signals:
    • Universal PCI compatible, with 3.3 and 5V
    • RS-232, TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
    • RS-422, TxD+(B), TxD-(A), RxD+(B), RxD-(A), RTS+(B),RTS-(A), CTS+(B), CTS-(A), GND
    • 4-wire RS-485, TxD+(B), TxD-(A), RxD+(B), RxD-(A),GND
    • 2-wire RS-485, Data+(B), Data-(A), GND
  • Speed: from 50 bps to 921.6 Kbps
  • For Linux 2.4, Linux 2.6, Win2000, Win95/98, WinME, WinNT, WinXP (drivers included)
  • Connector: DB62 female
  • Parity: None, Even, Odd, Space, Mark
  • Data Bits: 5, 6, 7, 8
  • Stop Bits: 1, 1.5, 2
  • IRQ and I/O Address: BIOS assigned
  • Flow Control: RTS/CTS, XON/XOFF
  • Options:
    • 8-port, male DB9, RS-232 Connection Box (ref Opt8-M9)
    • 8-port, 8-pin RJ45, RS-232 Connection Box (ref Opt8-RJ45)
    • 8-port, female DB25, RS-232 Connection Box (ref Opt8A)
    • 8-port, male DB25, RS-232 Connection Box (ref Opt8B)
    • 8-port DB25 Male RS-232 connection cable (ref CBL-M62M25x8-100)
    • 8-port DB9 Male RS-232 connection cable (ref CBL-M62M9x8-100)
    • 8-port, female DB25, RS-232 Connection Box w/ surge protection (ref Opt8S)


RS232/RS485 converter

Lambda RS232/RS485 converter

  • very compact
  • low price
  • for DB9 connectors
  • included 9 V adapter


USB/RS485 converter

Nudam 6530 USB/RS485-RS422 converter

  • RS-485 (2 wire halfduplex), Data+/- / GND
  • RS-422 (4-wire fullduplex), TxD-/+ / RxD+/- / RTS+/- / CTS+/- / GND
  • Optical Isolation: 2500 Vrms on RS232 side
  • max speed: 115.2Kbps
  • 9 V adapter not included but not necessary
  • USB cable included

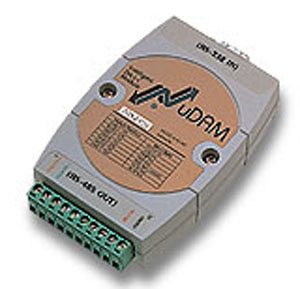

Nudam 6520 RS232/RS485-RS422 converter

  • for DB9 connectors on RS232 side
  • RS232:TxD / RxD / RTS / CTS / DTR / DSR / DCD / GND
  • RS-485 (2 wire halfduplex), Data+/- / GND
  • RS-422 (4-wire fullduplex), TxD-/+ / RxD+/- / RTS+/- / CTS+/- / GND
  • RS485 data control: Automatic Data Direction Control or by RTS, Speed: max. 115.2Kbps
  • Optical Isolation: 2500 Vrms on RS232 side
  • max speed: 115.2Kbps
  • 9 V adapter not included


MOXA NPort U1110 RS232 to USB converter

  • NPort U1110 adds 1 Windows serial COM port via the PC's USB port, and is compatible with both new or legacy RS-232 devices. This plug and play USB solution is perfect for mobile, instrumentation, and point-of-sale applications
  • Power: on the bus
  • Compliant with USB 1.0, 1.1, 2.0
  • Signals for RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • Speed: from 50 bps to 921.6 Kbps
  • Win2000, Win98, WinME, WinNT, WinXP (drivers included)
  • Connector: DB9 male
  • Parity: None, Even, Odd, Space, Mark
  • Data Bits: 5, 6, 7, 8
  • Stop Bits: 1, 1.5, 2
  • Flow Control: RTS/CTS, XON/XOFF


Expert EX94009 USB to RS232 converter

This unique cable allows you to use bridge/connectivity between the Universal Serial Bus (USB) and Serial Port interface.

  • 4 Serial Ports over USB Port
  • Fully 16C550 UART Compatible
  • Provides 4 DB9-Male Connectors
  • DC Jack for Optional DC 5V Power Input
  • Optional DC 5V over DB9-Male Connector


Expert EX98009 USB to RS232 converter

This unique cable allows you to use bridge/connectivity between the Universal Serial Bus (USB) and Serial Port interface.

  • 8 Serial Ports over USB Port
  • Baud Rate from 75 bps to 6Mbps
  • 512-Byte Deep FIFOs for each Port
  • Supports 5,6,7,8 Data Bits
  • Odd, Even, Mark, Space, or None parity mode
  • Supports 1, 1.5 and 2 Stop Bits
  • Supports USB Bus Power
  • DC Jack for Optional DC 5V Power Input
  • Optional DC 5V over DB9-Male Connector


MOXA NPort 1240 RS232 to USB converter

  • NPort 1240 adds 4 Windows serial COM port via the PC's USB port, and is compatible with both new or legacy RS-232 devices. This plug and play USB solution is perfect for mobile, instrumentation, and point-of-sale applications.
  • Two power options: external or on the bus
  • Compliant with USB 1.0, 1.1, 2.0
  • Signals for RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • Speed: from 600 bps to 115.2 Kbps
  • Win2000, Win98, WinME, WinXP, Linux (drivers included)
  • Connectors: DB9 male
  • Parity: None, Even, Odd
  • Data Bits: 7, 8
  • Stop Bits: 1, 2
  • Flow Control: RTS/CTS, XON/XOFF


MOXA NPort 1220/120I RS422/RS485 to USB converter

  • NPort 1220 adds 2 Windows serial COM port via the PC's USB port, and is compatible with both new or legacy RS422/RS485 devices. This plug and play USB solution is perfect for mobile, instrumentation, and point-of-sale applications.
  • Low cost USB to RS-422/485 Hub
  • Two power options: external or on the bus
  • Compliant with USB 1.0, 1.1, 2.0
  • Signals:
    • RS-422, TxD+/-, RxD+/-, GND
    • 4-wire RS-485, TxD+/-, RxD+/-, GND
    • 2-wire RS-485, Data+/-, GND
  • Speed: from 600 bps to 115.2 Kbps
  • Win2000, Win98, WinXP, Linux (drivers included)
  • Connectors: terminal block
  • Parity: None, Even, Odd
  • Data Bits: 7, 8
  • Stop Bits: 1, 2
  • Flow Control: RTS/CTS, XON/XOFF


MOXA UPort 1410/1450 RS232 or RS422/RS485 to USB converter

  • UPort 1410: USB to 4-port RS-232 Serial Hub
  • UPort 1450: USB to 4-port RS-232/422/485 Serial Hub
  • Supports high-speed USB 2.0, up to 480 Mbps
  • Two power options: external or on the bus
  • Compliant with USB 1.0, 1.1, 2.0
  • Signals:
    • RS-232, TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
    • RS-422, TxD+(B), TxD-(A), RxD+ (B), RxD-(A), GND
    • 4-wire RS-485, TxD+ (B), TxD-(A), RxD+ (B), RxD-(A), GND
    • 2-wire RS-485, Data+ (B), Data-(A), GND
  • Speed: from 50 bps to 921.6 Kbps
  • Win2000, WinXP, Win2003 (drivers included)
  • Connectors: DB9 male
  • Parity: None, Even, Odd, Space, Mark
  • Data Bits: 5, 6, 7, 8
  • Stop Bits: 1, 1.5, 2
  • Flow Control: RTS/CTS, XON/XOFF


MOXA UPort 1610-8/1650-8 RS232 or RS422/RS485 to USB converter

  • UPort 1610-8: USB to 8-port RS-232 Serial Hub
  • UPort 1650-8: USB to 8-port RS-232/422/485 Serial Hub
  • Supports high-speed USB 2.0, up to 480 Mbps
  • Two power options: external or on the bus
  • Compliant with USB 1.0, 1.1, 2.0
  • Signals:
    • RS-232, TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
    • RS-422, TxD+(B), TxD-(A), RxD+ (B), RxD-(A), GND
    • 4-wire RS-485, TxD+ (B), TxD-(A), RxD+ (B), RxD-(A), GND
    • 2-wire RS-485, Data+ (B), Data-(A), GND
  • Speed: from 50 bps to 921.6 Kbps
  • Win2000, WinXP, Win2003 (drivers included)
  • Connectors: DB9 male
  • Parity: None, Even, Odd, Space, Mark
  • Data Bits: 5, 6, 7, 8
  • Stop Bits: 1, 1.5, 2
  • Flow Control: RTS/CTS, XON/XOFF


MOXA UPort 1610-16/1650-16 RS232 or RS422/RS485 to USB converter

  • UPort 1610-16: USB to 16-port RS-232 Serial Hub
  • UPort 1650-16: USB to 16-port RS-232/422/485 Serial Hub
  • Supports high-speed USB 2.0, up to 480 Mbps
  • Two power options: external or on the bus
  • Compliant with USB 1.0, 1.1, 2.0
  • Signals:
    • RS-232, TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
    • RS-422, TxD+(B), TxD-(A), RxD+ (B), RxD-(A), GND
    • 4-wire RS-485, TxD+ (B), TxD-(A), RxD+ (B), RxD-(A), GND
    • 2-wire RS-485, Data+ (B), Data-(A), GND
  • Speed: from 50 bps to 921.6 Kbps
  • Win2000, WinXP, Win2003 (drivers included)
  • Connectors: DB9 male
  • Parity: None, Even, Odd, Space, Mark
  • Data Bits: 5, 6, 7, 8
  • Stop Bits: 1, 1.5, 2
  • Flow Control: RTS/CTS, XON/XOFF


ethernet - RS232 converter

MOXA NPort 5110 ethernet - RS232 converter

  • Connect RS-232 equipement to Ethernet
  • 1 RS232 port
  • RS232 Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • Speed: from 110 bps to 230.4 Kbps
  • Connectors: DB9 male
  • Parity: None, Even, Odd, Space, Mark
  • Data Bits: 5, 6, 7, 8
  • Stop Bits: 1, 1.5, 2
  • Flow Control: RTS/CTS, XON/XOFF
  • Power input: 12 to 48 VDC
  • Protocols: ICMP, IP, TCP, UDP, DHCP, BootP, Telnet, DNS, SNMP, HTTP, SMTP
  • Windows 95/98/ME/NT/2000/XP/2003/XP x64/2003 x64 COM driver, Linux real TTY driver, SCO Unix, SCO OpenServer 5, UnixWare 7, UnixWare 2.1.x, SVR4.2, QNX
  • Configuration: Web /serial/Telnet console, or Windows utility


MOXA NPort 5130 ethernet - RS422/RS485 converter

  • Connect RS-422/RS485 equipement to Ethernet
  • 1 RS-422/RS485 port
  • Signals:
    • RS-422: Tx+, Tx-, Rx+, Rx-, GND
    • RS-485 (2-wire): Data+, Data-, GND
    • RS-485 (4-wire): Rx+, Tx-, Rx+, GND
  • Speed: from 50 bps to 921.6 Kbps
  • Connectors: DB9 male
  • Parity: None, Even, Odd, Space, Mark
  • Data Bits: 5, 6, 7, 8
  • Stop Bits: 1, 1.5, 2
  • Flow Control: RTS/CTS, XON/XOFF
  • Power input: 12 to 48 VDC
  • Protocols: ICMP, IP, TCP, UDP, DHCP, BootP, Telnet, DNS, SNMP, HTTP, SMTP
  • Windows 95/98/ME/NT/2000/XP/2003/XP x64/2003 x64 COM driver, Linux real TTY driver, SCO Unix, SCO OpenServer 5, UnixWare 7, UnixWare 2.1.x, SVR4.2, QNX
  • Configuration: Web /serial/Telnet console, or Windows utility


MOXA NPort 5210 ethernet - RS232 converter

  • Connect RS-232 equipement to Ethernet
  • 2 RS232 ports
  • RS232 Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • Speed: from 110 bps to 230.4 Kbps
  • Connectors: 2 x 8 pins RJ45
  • Parity: None, Even, Odd, Space, Mark
  • Data Bits: 5, 6, 7, 8
  • Stop Bits: 1, 1.5, 2
  • Flow Control: RTS/CTS, XON/XOFF
  • Power input: 12 to 48 VDC
  • Protocols: ICMP, IP, TCP, UDP, DHCP, BootP, Telnet, DNS, SNMP, HTTP, SMTP
  • Windows 95/98/ME/NT/2000/XP/2003/XP x64/2003 x64 COM driver, Linux real TTY driver, SCO Unix, SCO OpenServer 5, UnixWare 7, UnixWare 2.1.x, SVR4.2, QNX
  • Configuration: Web /serial/Telnet console, or Windows utility


MOXA NPort 5410 ethernet - RS232 converter

  • Connect RS232 equipement to Ethernet
  • 4 RS232 ports
  • Signals: RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • Speed: from 50 bps to 921.6 Kbps
  • Connectors: DB9 male
  • Parity: None, Even, Odd, Space, Mark
  • Data Bits: 5, 6, 7, 8
  • Stop Bits: 1, 1.5, 2
  • Flow Control: RTS/CTS, XON/XOFF
  • Power input: 12 to 48 VDC
  • Protocols: ICMP, IP, TCP, UDP, DHCP, BootP, Telnet, DNS, SNMP, HTTP, SMTP
  • Windows 95/98/ME/NT/2000/XP/2003/XP x64/2003 x64 COM driver, Linux real TTY driver, SCO Unix, SCO OpenServer 5, UnixWare 7, UnixWare 2.1.x, SVR4.2, QNX
  • Configuration: Web /serial/Telnet console, or Windows utility


SEE232LE

SEE232ST

SEE232IA

Exemys SSE RS232/RS485-ethernet converter

encapsulate any data from a RS232 or RS485 serial port, in a TCP/IP data packet obtaining world connectivity through Internet.

How it works:

1) Connect the Serial Port to your Serial device

2) Connect the SSE to the TCP/IP network (RJ45 Ethernet connector)

3) Use your device remotely, with the software you usually use

Thanks to a small software installed in your PC (Exemys COM Port Redirector) you will be able to use the original software of your serial device. The information that previously used to exit through a serial port, now exits through a TCP/IP port and remotely connects with the SSE, making a serial tunnel transparent for the user.

power: 10-30 V DC

Ref. Nr RS232 RS422 RS485 Total COM Port digital input digital output
SSE232-1C00-LE yes yes yes 1 0 0
SSE232-1000-LE 1 0 0 1 0 0
SSE232-1083-ST 1 0 0 1 8 3
SSE232-1C43-ST yes yes yes 1 4 3
SSE232-2043-ST 2 0 0 2 4 3
SSE232-2232-ST 2 2 0 4 3 2
SSE232-3132-ST 3 1 0 4 3 2
SSE232-4032-ST 4 0 0 4 3 2
SSE232-1C4C-IA yes yes yes 1 yes yes
SSE232-1044-IA 1 0 0 1 4 4
SSE232-2044-IA 2 0 0 2 4 4
SSE232-114C-IA 1 1 0 2 4 4
SSE232-224C-IA 2 2 0 4 yes yes

yes: can be configurated in RS232 or RS485 or RS422


Cellular Serial Server GRD 1300

The GRD-1000 is a Serial Server that allows to connect a remote serial port, using a Cellular data communication channel (GSM/GPRS).

For those applications where the end user software does not have a TCP/IP connection, there is a serial port redirector (MW Redirector) software.

Description

  • Reduction of communication costs. You only pay for what you consume
  • TCP/IP transport protocol over a GPRS data network
  • Transparent encapsulation of serial protocols
  • DIN rail mount in industrial cabinet
  • Wide range of power supply from 10 to 30 Vdc.
  • Configuration protected with password
Ref. Nr SERIAL PORT USB digital input digital output analog input
GRD1300 RS232/RS485 yes 0 0 0
GRD3305 RS232/RS485 yes 4 2 4


Exemys GRD3305 Modbus Master with GSM Communication

acts as a master device within a Modbus network (RS485 or RS232)

The device has also 2 analog inputs: 4-20mA, 0-10Vdc or 0-1Vdc

Data are transferred to a MySQL database, using a cellular data communication.

Once the data is in the base, can be displayed by 3 ways:

- With a Pre-Design Web Site, by Exemys

- With a Design Web Site, by Final User

- reading directly in the MySQL database


EX-9543G-MM-M(SC/ST) ethernet converters

EX-9543G-MM-M(SC/ST)/ EX-9543G-SM-M(SC/ST) series are industrial gigabit media converters. They provide media conversion between 10/100/1000Base-T(X) and 1000Base-X. EX-9543G-MMM(SC/ST)/ EX-9543G-SM-M(SC/ST) series are rigid IP-30 housing design and supporting an operating temperature of -40 to 75°C. Therefore, the EX-9543G-MM-M(SC/ST)/ EX-9543G-SMM(C/ST) series are reliable media converters and can satisfy most demand of operating environment.

  • 1 port 10/100/1000Base-T(X) auto-negotiation and auto-MDI/MDI-X
  • 1 port 1000Base-X multi-mode/single-mode or SFP port
  • Jumbo Frame up to 10240 Bytes
  • store-and-forward transmission
  • relay output to carry capacity of 1A at 24 VDC
  • P-30 housing design
  • DIN rail and wall mounting enabled
  • MM-M Multi mode/ SM-M for Single mode optional
  • SC/ ST connecter optional
  • Ethernet Standards: IEEE802.3 for 10Base-T, IEEE802.3u for 100Base-T, IEEE802.3ab for 1000Base-T, IEEE802.3z for 1000Base-X
EX-9543G-MM-M(SC/ST) EX-9543G-SM-M(SC/ST) EX-9543G-sfp port
RJ-45 Port 1 1 1
Fiber Ports 1 1 0
1000Base-X SFP Ports 0 0 1


ethernet converter

EX-9132 ethernet converters

EX-9132C-232: TCIP to Modbus RTU, 1 x COM (RS232)

EX-9132C-232-PoE: TCIP to Modbus RTU, 1 x COM (RS232) with PoE

EX-9132C-485: TCIP to Modbus RTU, 1 x COM (RS485)

EX-9132C-485-PoE: TCIP to Modbus RTU, 1 x COM (RS485) with PoE

EX-9132C: TCIP to Modbus RTU, 1 x COM (RS232/RS422/RS485)

EX-9132C-2: TCIP to Modbus RTU, 2 x COM (1xRS232 + 1xRS232/RS422/RS485)

EX-9132H-PoE: TCIP to Modbus RTU, 2 x COM with PoE

EX-9132C-2-DIO: TCIP to Modbus RTU, 2 x COM (1 x RS232, 1 x RS485/RS422) with 2 digital inputs and 2 digital output

EX-9132CST:ethermet to 2 x COM (1 x RS232, 1 x RS485/RS422) with 2 digital inputs and 2 digital output

EX-9132H-PoE: Modbus TCIP to Modbus RTU, 2 x COM (1xRS232 + 1xRS232/RS422/RS485)

EX-9132C-2-MTCP: Modbus TCIP to Modbus RTU/ASCII, 1 x COM (RS232/RS422/RS485) + 1 x COM RS232


ethernet converter

Modbus TCP to Modbus RTU/ Modbus ASCII converter EX9133C-2-MTCP

The EX9133C-2-MTCP is one of gate way for easy convert the Modbus TCP to Modbus RTU/ Modbus ASCII(Slave) or Modbus RTU/ Modbus ASCII to Modbus TCP(Slave) .

EX-9133C-2-MTCP converter device can be configured as network server or network client. In the client mode, it can be installed in network which is protected by NAT router or firewall without a real IP address.

It is low cost and high performance for building automation, home automation,smart energy, internet remote access, remote gateway for SCADA & OPC.

  • CPU 32-bit ARM-Cortex-M4 CPU, 120MHz( Max)
  • RAM 128 K Bytes SRAM
  • ROM 512 K Bytes Flash ROM
  • Ethernet Port type RJ-45 Connector
  • Speed 10 /100 M bps ( Auto Detecting)
  • Mode :TCP Client/ Server
  • Setup HTTP Browser Setup (IE & Netscape)
  • Security Setup Password
  • Protection Built-in 1.5KV Magnetic Isolation
  • Serial Port :2 RS-232 ( 1 x DB9), 1 RS-422/485 ( Auto Detect ; T.B.)
  • Speed 300 bps~115.2 K bps
  • Parity None , Odd , Even , Mark , Space
  • Data Bit 5, 6, 7, 8
  • Stop Bit 1, 2
  • Port-1 RS-232 Pins: Rx , Tx , GND , RTS , CTS , DTR , DSR , DCD
  • Port-2 RS-422 Rx+ , Rx- , Tx+ , Tx- (Surge Protect)
  • RS-485 Data+ , Data- (Surge Protect)
  • Built –in RS-422/RS-485 pull high Resistor
  • 15KV ESD for all signals
  • IP Search Utility Support Win 10, Win-7, Vista, Win-XP, Win-2003 server, Win-2000
  • Power DC 9- 24V, 500mA, DC Jack


ethernet converter

EX9188E2D/E3D/E4D/E5D/E8D-MTCP Ethernet to RS232/RS485 converters

EX9188E2D: 1 COM port, 1 x COM1 RS232 (5 wires) + COM2 RS485(2 wires)

EX9188E3D: 3 COM port, 1 x COM1 RS232 (5 wires) + COM2 RS485(2 wires) + COM3 RS232 (3 wires)

EX9188E4D: 4 COM port, 1 x COM1 RS232 (5 wires) + COM2 RS485(2 wires) + COM3/COM4 RS232 (3 wires)

EX9188E5D: 5 COM port, 1 x COM1 RS232 (5 wires) + COM2 RS485(2 wires) + COM3/COM4/COM5 RS232 (3 wires)

EX9188E8D: 8 COM port, 1 x COM1 RS232 (5 wires) + COM2 RS485(2 wires) + COM3 to COM8 RS232 (3 wires)

they can use virtual COM port on the PC


ethernet converter

MOXA Ethernet to RS232/RS485 NPort 5610-8-DTL/NPort 5650-8-DTL

Ethernet

  • Number of Ports: 1
  • Speed: 10/100 Mbps, auto MDI/MDIX
  • Connector: 8-pin RJ45
  • Magnetic Isolation Protection: 1.5 kV built-in

Serial Interface

  • Number of Ports: 8
  • Serial Standards NPort 5610-8-DTL: RS-232
  • NPort 5650-8-DTL/5650I-8-DTL: RS-232/422/485
  • Connector: DB9 male
  • Serial Line Protection: 15 kV ESD protection for all signals, 2 kV isolation protection (NPort 5650I-8-DTL only)
  • RS-485 Data Direction Control ADDC® (Automatic Data Direction Control)
  • Pull High/Low Resistor for RS-485: 1 kOhms, 150 kOhms
  • Terminator for RS-485: 120 Ohms

Serial Communication Parameters

  • Data Bits: 5, 6, 7, 8
  • Stop Bits: 1, 1.5, 2
  • Parity: None, Even, Odd, Space, Mark
  • Flow Control: DSR/DTR and RTS/CTS (RS-232 only), XON/XOFF
  • Baudrate: 50 bps to 921.6 kbps

Serial Signals

  • RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w: Data+, Data-, GND


ethernet converter

ethernet converter

Wifi RS232/RS485 converter EX9486C-W-MTCP

Modbus RTU/ASCII Slave to Modbus TCP Master

Modbus TCP Slave to Modbus RTU/ACSII Master

Modbus modes*4 Browser selectable

Support 8 TCP Masters simultaneously

Support serial Master access to 8 TCP Slaves

Web Browser Configuration

Easy Wireless setup by PC or Mobile

Supports 802.11b/g/n

With this converter it is also possible to access your automated system remotely with a Android or iOS phone. A special application has been developped for it: MobilScada(MiniScada). It will only provide read access to the selected I/O Devices by default. Writing or editing the I/O devices is automatically disabled unless you specifically enable it for writing values to the I/O controller.


ethernet converter

EX-9212LoRa-S/E/DIO, Lora to RS232/RS485 or ethernet converter

Modbus RTU/ASCII to LoRa

Modbus TCP to LoRa

Modbus IO to LoRa

Support 1500~7500 Meter in free space

Support 20dBm Transmit Output Power

Support RS232/485/232/Ethernet/ DIO


Contact

Top

Sysmatec
Oberdorfstrasse 51
CH 3930 Eyholz
tel + 41 27 946 80 18
fax + 41 27 946 86 42
info@sysmatec.ch
