Universal loggers and chart recorders

Data logger

DaqPro 5300

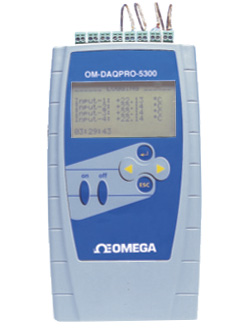

Data logger DaqPro 5300

  • Handheld-Datenlogger with 8 input channels: 0-50 mV, 0-10 V, 0-24 mA, Pt100 (8x2- or 4x3-wire), Thermocouple type J, K and T, Thermistors (2,252 kOhm or 10 kOhm), Frequency and pulse counter (channel1)
  • 16-bits resolution
  • Memory: 512 kB RAM (about 512 000 measurements with 1 channel, 64000 measurements for 8 channels)
  • Up to 4000 samples/sec, only if channel 1 is used, else 1 sample/sec
  • Internal Ni-MH battery, external 9 to 12 V adapter included
  • Battery life: 40 hours
  • Operating temperature: 0-50 °C
  • USB-interface
  • Included software (grafical or table representation, data export function)
  • Option: Weather proof IP67 box for the datalogger


Data logger DaqLink

4-channel multi-probe data logger

The DaqLink built-in sensors support standard temperature and humidity environment monitoring needs and an extensive range of data acquisition requirements are also accommodated with four external sensor inputs for PT-100, Thermocouple J, K and T, 0-1 V, 0-50 mV, 4-20 mA, Contact, Frequency and Pulse Counter.

Sensors type for DBSA710

  • Internal Temperature
  • 4 to 20 mA
  • 0 to 50 mV
  • 0 to 1 V
  • Temperature PT-100 (2-wires)
  • Temperature Thermocouple J, K der T
  • Pulse Counter or Frequency (input 4 only)

Sensors type for DBSA720

  • Internal Temperature
  • Internal Humidity
  • 4 to 20 mA
  • 0 to 50 mV
  • 0 to 1 V
  • Temperature PT-100 (2-wires)
  • Temperature Thermocouple J, K der T
  • Pulse Counter or Frequency (input 4 only)


ES120

Data logger ES120

  • measurement range: 0 to 5 V or 0 to 20 mA switchable (maximal voltage 5 V)
  • 2 channels
  • measurement precision: ±6mV in voltage, ±0.1% of reading in current or ±44uA
  • memory: 16000 points/channel
  • sample interval: 10 seconds to 24 hours in 10 seconds increments
  • ambient operating conditions: -40 to 80°C, 0 to 90 % RH non-condensing
  • 3 V lithium battery included
  • battery life (average): 5 years
  • software ref. A015 for data transfert and SW400 for calibration


Data logger EL-USB-3

  • 0-30 V input
  • Resolution: 50 mV
  • Logging Rates: between 1s and 12hr
  • Memory: 32,000 readings
  • Connection via two screw terminals
  • USB Interface for Set-up and Data Download
  • User-Programmable Alarm Thresholds
  • Red and Green LED Status Indication
  • Replaceable Internal Lithium Battery
  • Battery Life: about 1 year
  • Configuration and download software for Windows XP and Vista


Data logger EL-USB-4

  • 4-20 mA Current Loop Measurement Range
  • Resolution: +/- 0.05 mA
  • Logging Rates: between 1s and 12hr
  • Memory: 32,000 readings
  • Connection via two screw terminals
  • USB Interface for Set-up and Data Download
  • User-Programmable Alarm Thresholds
  • Red and Green LED Status Indication
  • Replaceable Internal Lithium Battery
  • Battery Life: about 1 year
  • Configuration and download software for Windows XP and Vista


Data logger MSR145

Option: 2 analog inputs, 0 to 20 mA, 0 to 24,0 V, 12 Bits (incl. temperature, humidity, pressure, 3-axis- acceleration /only 2 of them) or 4 analog inputs, 0 to 20 mA, 0 to 24,0 V, 12 Bits (incl. temperature, humidity, pressure, 3-axis- acceleration /only 2 of them).

The complete description is here


Data logger MSR160

4 analog inputs, 0 to 20 mA, 0 to 24.0 V, 12 Bits (max. 2 external sensors like temperature, humidity, pressure). It can be extended with internal sensors: temperature, humidity, pressure, acceleration.

The internal memory can be extended with a micro SD card.

The complete description is here


Data logger MSR165

Option: 4 analog inputs, 0 to 20 mA, 0 to 24,0 V, 12 Bits (max. 2 external sensors, light sensor not available)

The complete description is here


Data logger Gigalog S

GigaLog is a data logger for up to 2 Gbytes of data using Micro SD memory cards. It can record a few million of datas. They can be transfered to a computer with the Micro SD card or with the RS232/RS485 interface.

Description

  • Configurable
  • 2 versions: only print or with DIN rail DIN housing
  • Stores data from analog or digital inputs
  • 16 single ended inputs 0-2.5 V or 0-20 mA, 24 bit resolution, each input can read a thermocouple type K (50°C to 1300 °C) including cold junction compensation or Pt100 (-200°C to +850 °C), or 8 differential inputs
  • Digital inputs, 0/5V
  • Counter up to 500 Hz
  • Input options: RC filter, voltage divider for higher voltages
  • Sample rates from 10 millisecond to 24 hours
  • Stores incoming data from RS232/RS485: baud rates from 300 to 115200 baud, no need for flow control, optional timestamp at the beginning or the end of a frame. The datas can also be transfered from the USB port.
  • Supports data from GPS
  • Remote control (GigaLog F): by modem,verify state, change configuration, disk handling, upload logged data, by SMS, GSM modem: request state
  • Alarm: Toggle relay, store message in disk file, call centre using a modem, send SMS using a GSM modem.
  • Each hour, day, once a week: call centre, send SMS
  • 2 solid state relays (60V, 150 mA)
  • Msdos/ Windows compatible file system
  • Power supply 6 to16 V unregulated typ 50mA. 100x86x25mm or 105x90x60 mm
  • Power reduction mode: 50 µA
  • Ambient operating conditions: temperature -20°C to 70°C, humidity 0 to 90% non condensing
  • Option: touchscreen for data display


Data logger Gigalog S-GSM

  • Same version as Gigalog S but with integrated GSM card.
  • The Gigalog S board sends its data regularly over the GSM network.
  • Your data will be stored in web based database.
  • From every where in the world, you or your clients can display, and download the logged data.
  • It is possible to add a GPS module.

What you need ?

  • Gigalog S board with, or without housing, with, or without graphic colour display.
  • Gsm65 modem board, plugs directly on the Gigalog S board.
  • SIM card with data rights.
  • 30 minutes, to get it to work.


Datalogger SRD-99

The SRD-99 device is designed to record and display current values as well as to present technological parameters in the form of graphs. The device is equipped with 8 temperature (Pt100/500/1000) or current (in the 0/4-20 mA standard) inputs, one pulse (digital) input for controlling the recording process and one USB Host port for flash data storage.

Internal memory size: 2 MB (0.5 million data recordings altogether) or 8 MB in version with USB port (2 milions data recordings).

External memory: USB flash . When the drive is plugged permanently, it can significantly extend the recording time without a need of data transfering from SRD-99 to a PC. For example: 1GB flash drive allows continuous data recording for over 1 year (8 channels recorded every 1 sec., approx 250 millions data recordings).

  • Analog Inputs: Pt100; Pt500; Pt1000 (2 and 3-conductor connection) or 0/4-20 mA inputs; common earthing
  • Resolution:16 bit (12 bit in unit with 0/4-20mA inputs)
  • Power supply voltage: 19V ÷ 50V DC, 16V ÷ 35V AC, 85 ÷ 260V AC/DC
  • Power consumption: typical 7 VA; max. 12 VA
  • Display: lit, graphic LCD, 128 x 64 points, with backlight
  • Communication interface: RS-485 (MODBUS RTU) or USB Host port, galvanically separated
  • Working temperature: 0°C ÷ +60°C
  • Case dimensions: 96 x 96 x 100 mm
  • Included with software for data transfert and configuration


Datalogger EL-2

  • capable of measuring, recording and displaying temperature (thermocouple K), voltage, current and frequencies
  • memory for 8000 readings and a battery life of up to 3 years
  • can operate as a 'stand alone' logger or be permanently connected to a computer (under Windows)
  • addressable and up to 8 loggers can be connected to one serial port
  • data output in text format and as graphics
  • temperature range 1 (external, thermocouple K): -25 to +200°C, with a resolution of 1 °C
  • temperature range 2 (internal): -10 to +50°C, with a resolution of 1 °C
  • voltage range: 0 to ±2V, 0 to ±20 V with a resolution of 0.01 V, 0.1 V respectively
  • current range: 0-2 A with a resolution of 0.01 A
  • frequency range: 40 to 400 Hz, with a resolution of 2 Hz
  • sampling rate: 1 sample per 5 seconds to 1 per 12 hours


Data logger MSR255

  • capable of measuring, recording and displaying up to five different sensors, four additional analogue inputs
  • There is a choice of temperature, humidity, air pressure and light sensors (fitted internally within the case or externally on a cable) together with a sensor for measuring acceleration in all three co-ordinate axes. The 3-axis acceleration sensor allows the peak value to be recorded once a second whilst making measurements of up to 1600 values per second per axis
  • memory capacity of the MSR 255 is over 2 million measurement parameters. Thanks to its high-capacity lithium polymer battery the datalogger is ideal for long-term data acquisition applications

Find your logger


Data logger OMNIAlog

It is a new multi channels data logger with 8/16/24 channels universal analog input, Ethernet, USB memory stick, high/low/derivate alarm, 2 digital inputs, 1 digital output, GPRS on board or optional WiFI.

Features

  • Increased number of sensors to which the datalogger can be connected.
  • Up to 405 sensors at a time connected through multiplexerboard.
  • Many types of sensors supported including thermistors, potentiometers, strain gauges, vibrating wires, reflectometersand soil moisture blocks.
  • Relay address to be used to directly go to a specific channel thus reducing power consumption and wear on the relay switches.
  • 8/16/24 universal input channels (MV, mA, mV/V, PT100, PT1000, TC)
  • Supports J, K, R, S, T, N, E, and B type thermocouples.
  • temperature, humidity, pressure sensor on board
  • 1 digital output, 2 digital inputs.
  • USB memory stick connection
  • GPRS and WiFi
  • Ethernet, RS485
  • Switchable sensor supply.


Wireless datalogger

Wireless datalogger Newsteo

The logger can transfer the data directly on a monitoring computer by radio frequencies or can store the data in its memory.

Up to 500 loggers can communicate with one RF-USB stick connected to the computer.

specification

  • resolution: 12 bits
  • sample interval: 1 second to 4 hours
  • memory: 32768 points
  • min/max value
  • battery life: 2 years (for 1 mesurement/10 minutes), there is also an extension pack for a bigger battery (4 to 7 years)
  • dimension: 96 mm x 40 mm x 20 mm (antenna: 90 mm)
  • RF range: 30 m to 1 km (there are different antenna sizes)
Ref. sensor box max signal range (m) antenna
LGS31 potentiometric 1 Ohm-10 MOhms IP65 900 external, 1/2 wave
LGS32 potentiometric 100 Ohms-5 KOhms IP65 900 external, 1/2 wave
LGS34 4-20 mA IP65 900 external, 1/2 wave
LGS36 relay, 10 Hz max. IP65 900 external, 1/2 wave
LGS39 puls 1000 Hz max. IP65 900 external, 1/2 wave
LGS37 -50 mV to +50 mV IP65 900 external, 1/2 wave
LGS35 0 to 10 V IP65 900 external, 1/2 wave

special probes for LGS31

  • crackmeter FISSU-0001: 0 to 10 mm, IP40, other strokes available on request, uses the cable STY58-002
  • crackmeter FISSU-0002 : 0 to 25 mm, IP67, other strokes available on request, uses the cable STY58-003
  • crackmeter FISSU-0003 : Type Gefran PCM050 (0 to 50 mm-500 mm), IP65, other strokes available on request, uses the cable STY58-004


Wireless datalogger miniOMNIAlog

It is an ultra low powered logger with optional integral modem designed specifically for remote and stand alone applications. miniOMNIAlog is designed for hard environment field use with IP67 box, USB memory stick and electromechanical relays for each measuring channel.

Features

  • Compact low cost solution with weather proof enclosures.
  • Cloud software monitoring.
  • Setup software with Web Server On Board.
  • Internal memory and USB memory stick.
  • Battery on Board.
  • 4 differential analog channels (mV, mA, mV/V, NTC,Thermocouple, depends on the models).
  • Accuracy: 0.05% F.S.
  • GPRS optionals.
  • Web Server on board.
  • Internet Of Things Technology.
  • Cloud Base Dashbord Management.

Wireless solutions

  • GSM/2G/3G can be the right choice for IoT application that requires long distance transmission. Worldwide coverage (depending on ISP). Quad-band EGSM 850/900/1800/1900 MHz. GPRS class 10
  • WMBus: The 169Mhz Wireless M-Bus is the wireless variant of M-Bus standard. It was developed to provide a system for remote reading of utility meters, like consumption of electricy in the home. 169MHz band Runs Wireless M-Bus N mode Protocol, defined by EN13757-4-2012 for this band on TX power to up to 35 mW
  • SIGFOX: SigFox is going to fill the spot between wi-fi and cellular line. The ISM band is license-free.The idea for SigFox is that many m2m application runs on small battery and only need few data to be transfered. Range: Long Range, 30-50Km(rural environments), 3-10Km (urban/noisy environments). Frequencies: 868MHz ISM Frequency


Energy Meter

Wi-Fi® Energy Meter Sentinel Power

The Sentinel Power is an innovative solution that allows electricity consumption to be monitored.

Description

  • Uses the Wi-Fi Infrastructure
  • Web-based Data Visualization
  • No Battery Needed
  • Alarming/Alerting System
  • Audit Trail of the Sensor Data
  • Nominal Current: 0 to 2000 A
  • Nominal Voltage: 90 to 480 V, 50-60 Hz
  • Data Storage: up to 10 days of sensor data at sampling rate of once per minute
  • Data Visualization & Re-porting: Desktop Software, Web Hosted or Enterprise Portal
  • Alerting System: Email or cell phone alerts when sensor crosses set threshold values (depending on Software version)

Benefits

  • Establish the breakdown of energy use (where does it all go?)
  • Allocate energy wastes to users
  • Determine efficiency of equipment
  • Audit before & after energy use for retrofit projects
  • Manage the load profile (peak demand)
  • Maintenance and Enterprise Asset Management


Wi-Fi® Energy Meter IPLUG

The iPlug is an innovative solution that allows electricity consumption to be monitored.

Description

  • Uses the Wi-Fi Infrastructure
  • Web-based Data Visualization
  • No Battery Needed
  • Alarming/Alerting System
  • Audit Trail of the Sensor Data
  • Nominal Current: 0 to 15 A
  • Nominal Voltage: 230 V, 50-60 Hz
  • Data Storage: up to 13 hours of sensor data at sampling rate of once per minute
  • Data Visualization & Re-porting: Desktop Software, Web Hosted or Enterprise Portal
  • Alerting System: Email or cell phone alerts when sensor crosses set threshold values (depending on Software version)
  • Plug Type: CEE 7/4 Schuko
  • Device Standby Power: 0.5W (average
  • Measurements: Vrms [V], Irms [A], Active Power [W], Power Factor (PF), Frequency [Hz], Accumulated Active Energy [kWh]
  • Pushbutton switch for connecting/disconnecting load. Can also be done remotely from the Web Portal
  • Dimensions 110mm x 60mm x 76mm
  • Weight 156g
  • Operating Temperature 0°C to 40°C


Chart recorder

Chart recorder ET855

  • measurement range: 0-20mA, 4-20mA, 0-5Vdc, 1-5Vdc (maximal voltage 5 V)
  • range: 0.0 à 100.0, 0 à 1000, 0.0 à 14.0, 0.0 à 150.0, 0.0 à 200.0, 0.0 à 300.0, -10.0 à +10.0, -150.0 à +250.0
  • measurement precision: +/-0.3 % of the full scale
  • recording time: 24 hours, 7 or 31 days swichable
  • ambient operating conditions: 0 to 50°C, 0 to 90 % RH non-condensing
  • 220 V / 9 V adapter included
  • backup with 9 V battery
  • battery life (average): 24 hours
  • disc diameter: about 20 cm
