Pallet truck scale KERN VHE-A
- Entry-level model into mobile weighing
- Highly versatile for general checkweighing, e.g.: plausibility check at goods receiving, determining shipping weights, avoiding overloads, safety checks
- Very manoeuvrable thanks to its compact construction and low weight
- Particularly robust with its components having been relocated from the load fork into the protected housing area. It is therefore also ideal for heavy applications in the production area and on board lorries
- Display device: protection against dust and water splashes IP65
- Low height of the loading forks easy uplifting to work with low pallets
- Pivot range 206°
- Castors: Solid rubber on aluminium rims
- Load rollers: Polyurethane
- Operation:
- Switch on and then pump up the load fork to the reference height
- Tare off
- Release the load fork and load the goods to be weighed
- Weighing: Pump the load fork with the goods to be weighed up to the reference height, read off the weight
- Ready for use: Batteries included 2×1.5 V AA. AUTO-OFF function to preserve the batteries. Operating time approx. 1 year / approx. 3000 weighings. Charge status indicator on display
| Model |
readout |
range |
|
g |
kg |
| VHE 2T5A |
5000 |
2000 |
|
 |

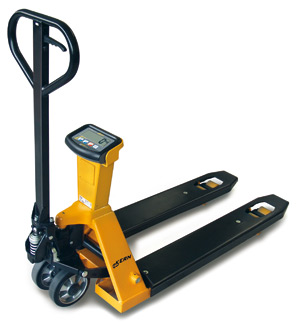

KERN VHB pallet truck scale
- rapid lift function 5 pump lifts to achieve the maximum height
- ready for use Batteries size AA (4x 1.5 V) included. AUTO-OFF function after approx. 3 min without a change of load, operating time approx. 80 h or 1700 weighings, charge condition indicator on display
- IP65
| Model |
readout |
range |
|
kg |
kg |
| VHB2T1 |
1 |
2000 |
| VHS2T1 (with printer) |
1 |
2000 |
|
 |
Pallet truck scaleKERN VFB
- Pallet truck scale with totalising function for weights and integrated rechargeable battery pack
- PRE-TARE function for manual deduction of a known container weight (e.g. pallet, mesh crate etc.)
- Load cells protected against dust and water splashes IP67, temporary use in wet areas possible
- Pivot range 180°
- Castors: Solid rubber on aluminium rims
- Load rollers: Tandem tyres to overcome thresholds and obstacles more easily. Material: Polyurethane
- Net/gross weight: to control the consumed weighing range at the touch of a key
- Totalising of weights
- Rechargeable battery pack internal, standard, operating time up to 40 h without backlight, charging time approx. 12 h
| Model |
readout |
range |
|
kg |
kg |
| FHB 2T-3 |
1 |
2000 |
|
|
|
